No.27 Gear P0SITION Indicator Light Does Not Illuminate In M Range [AW6A-EL]

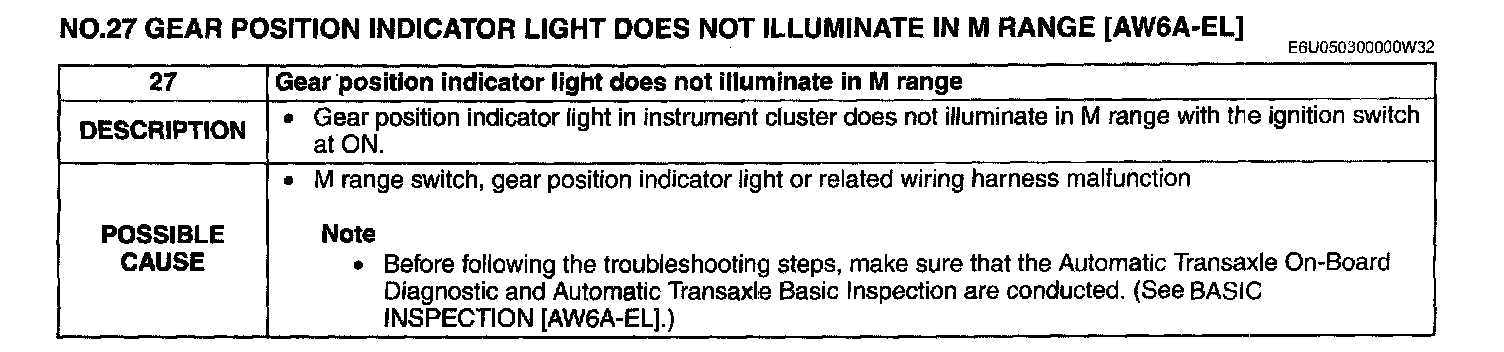

NO.27 GEAR P0SITION INDICATOR LIGHT DOES NOT ILLUMINATE IN M RANGE [AW6A-EL]

NO.27 GEAR P0SITION INDICATOR LIGHT DOES NOT ILLUMINATE IN M RANGE [AW6A-EL]:

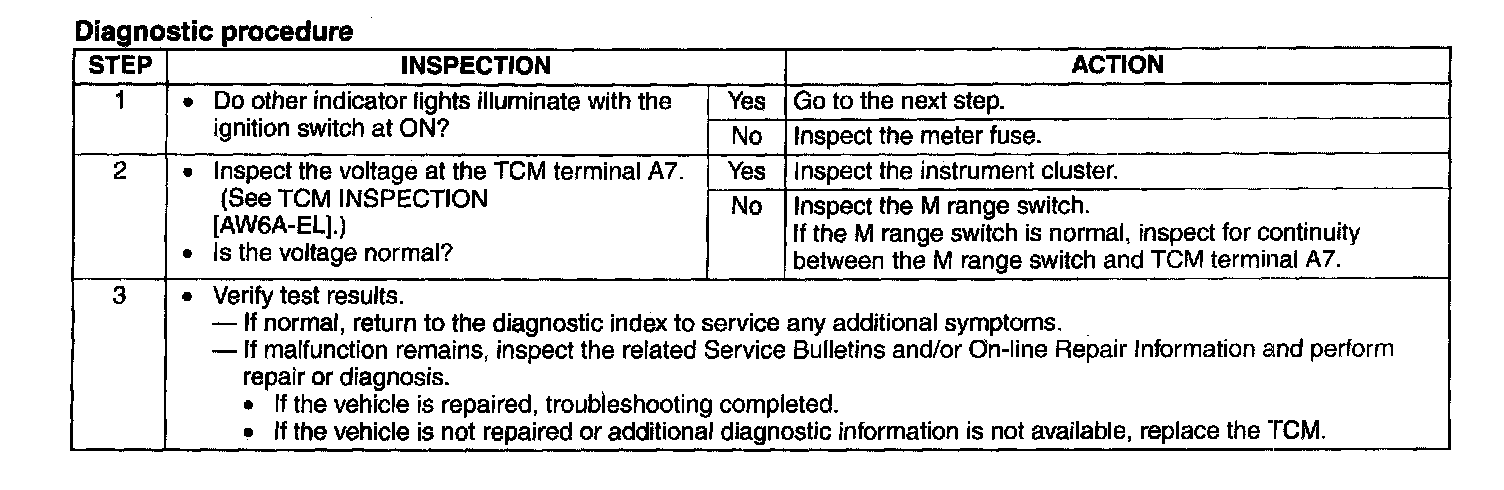

Diagnostic procedure

Step 1-Step 3:
