No.24 Engine Stalls When Shifted to D Range, or In R P0SITION [FS5A-EL]

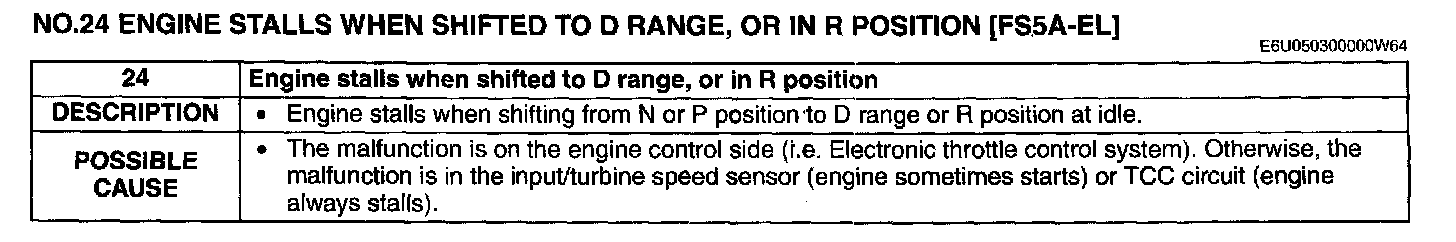

NO.24 ENGINE STALLS WHEN SHIFTED TO D RANGE, OR IN R P0SITION [FS5A-EL]

NO.24 ENGINE STALLS WHEN SHIFTED TO D RANGE, OR IN R P0SITION [FS5A-EL]:

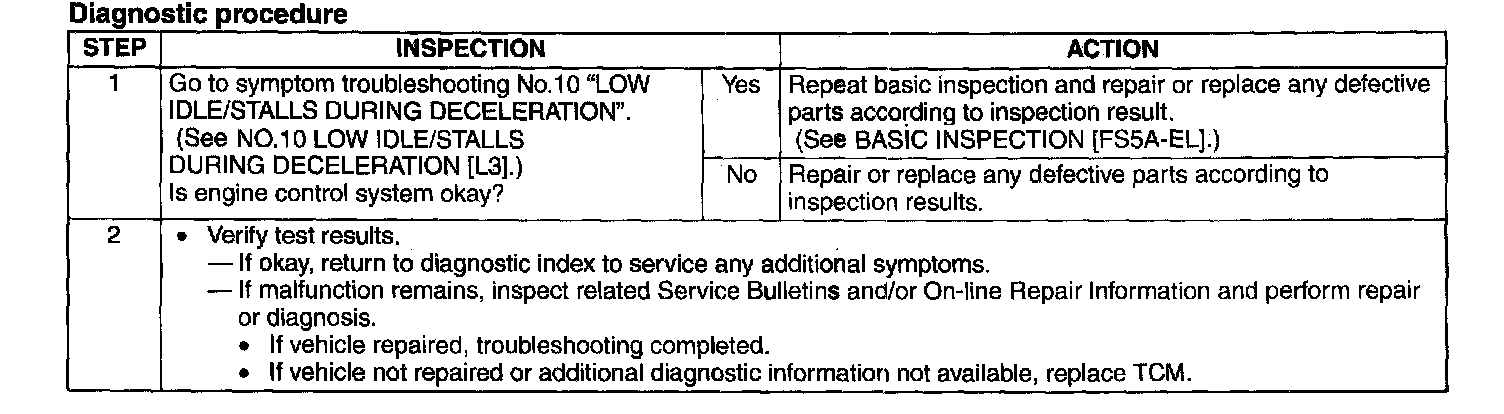

Diagnostic procedure

Step 1-Step 2:
