Joint Shaft Disassembly [L3 With TC]

JOINT SHAFT DISASSEMBLY [L3 WITH TC]

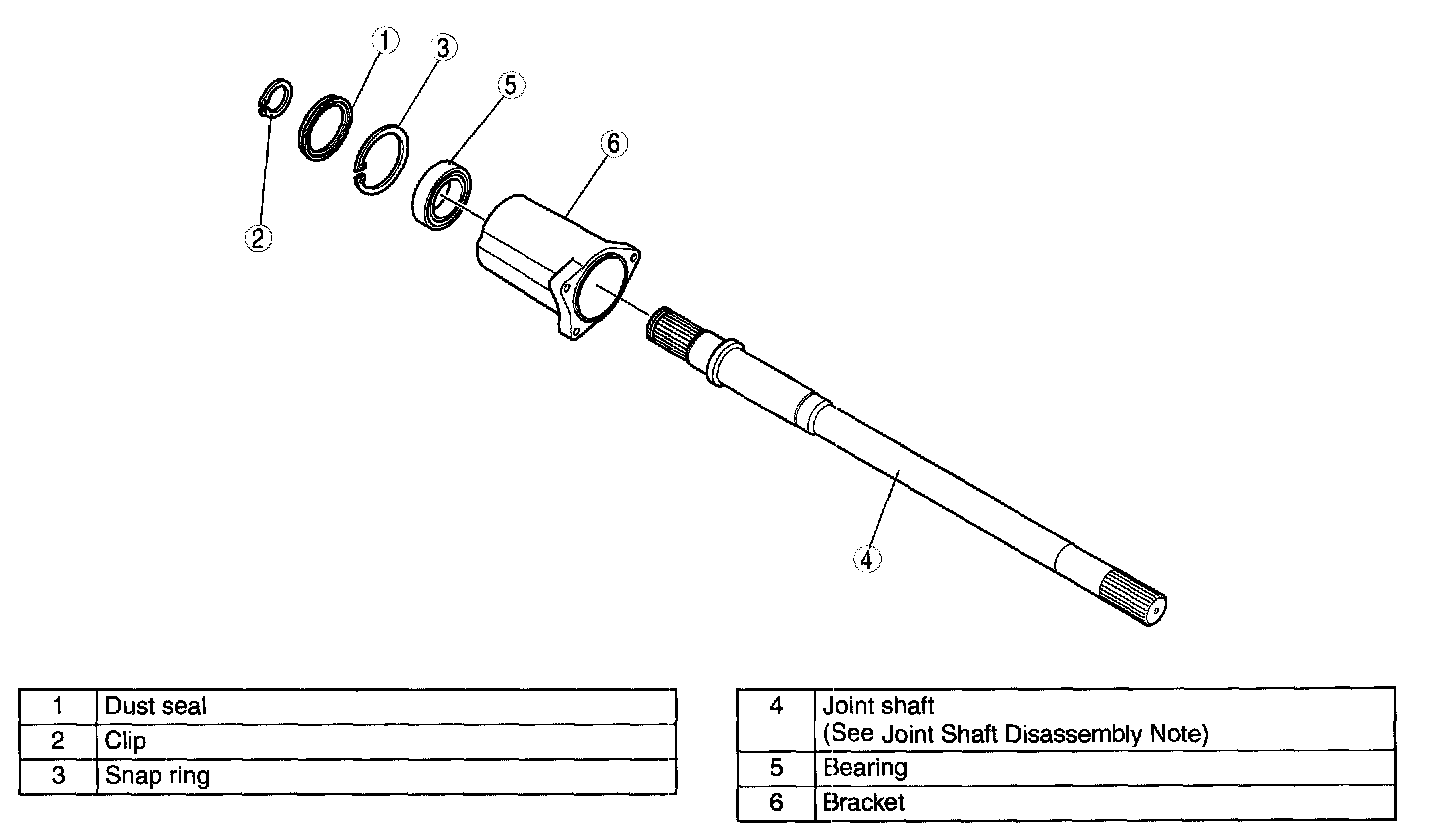

1. Disassemble in the order indicated in the table.

Dust Seal Disassembly Note
1. Remove the dust seal using a flathead screwdriver.

Joint Shaft Disassembly Note





1. Remove the joint shaft.
