Joint Shaft Assembly [L3 With TC]

JOINT SHAFT ASSEMBLY [L3 WITH TC]

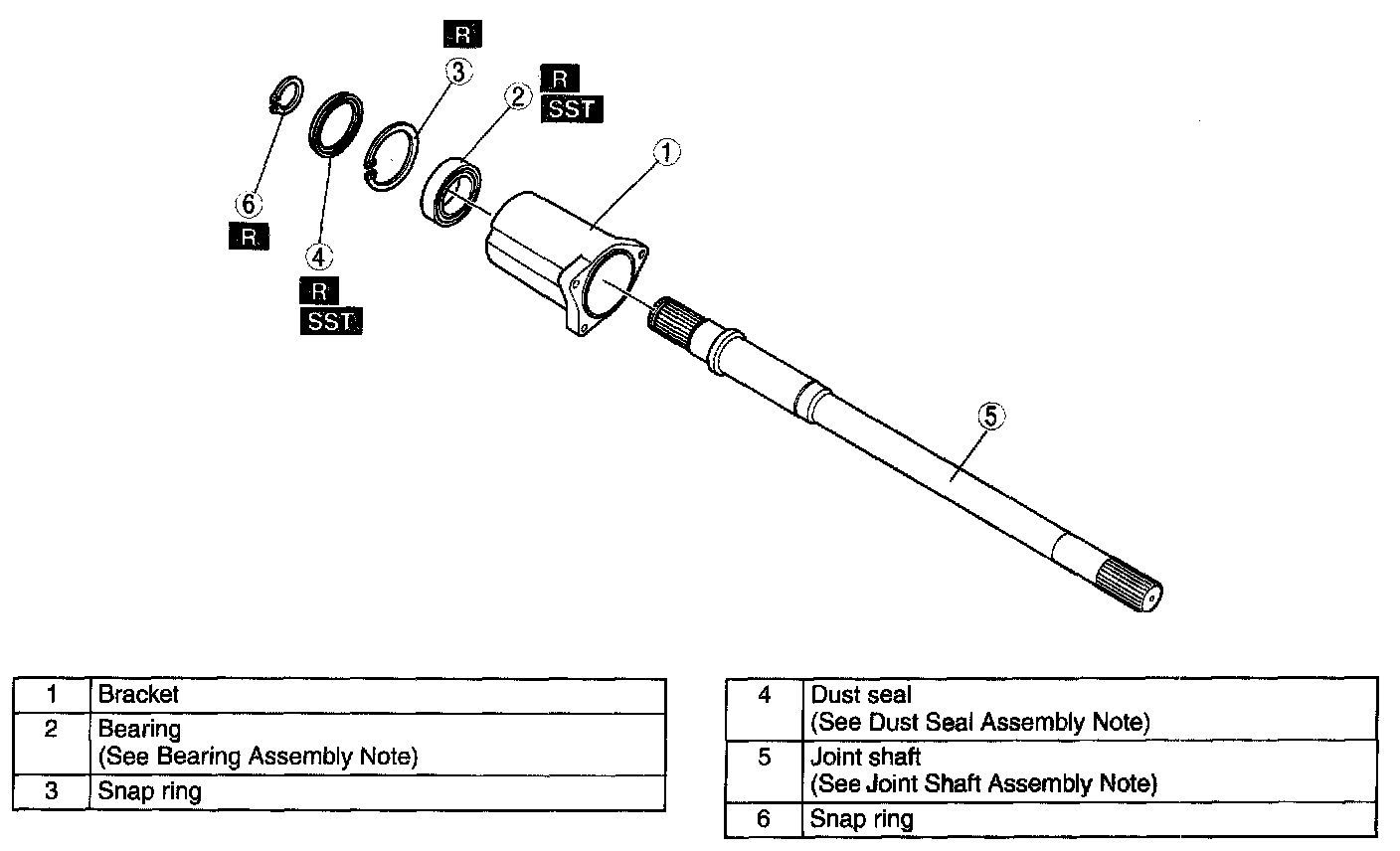

1. Assemble in the order indicated in the table.

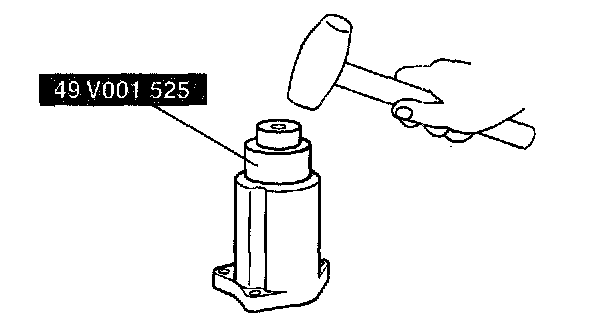

Bearing Assembly Note





1. Install the new bearing to the bracket.

Note:
^ When the bearing is not installed to the bracket by hand, install it using the SST.

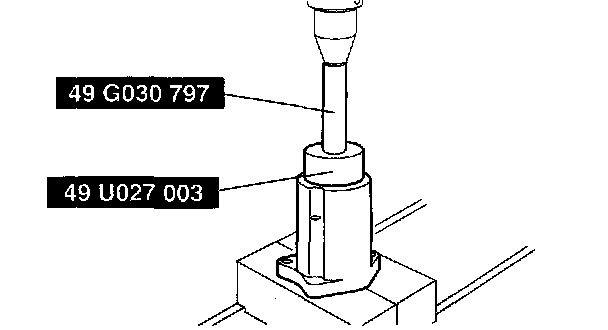

Joint Shaft Assembly Note





1. Install the joint shaft using a press and the SST.

Dust Seal Assembly Note





1. Apply grease to the new dust seal lip.
2. Install the new dust seal using a press and the SST.
