Shift Component Disassembly/Assembly

SHIFT COMPONENT DISASSEMBLY/ASSEMBLY
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.

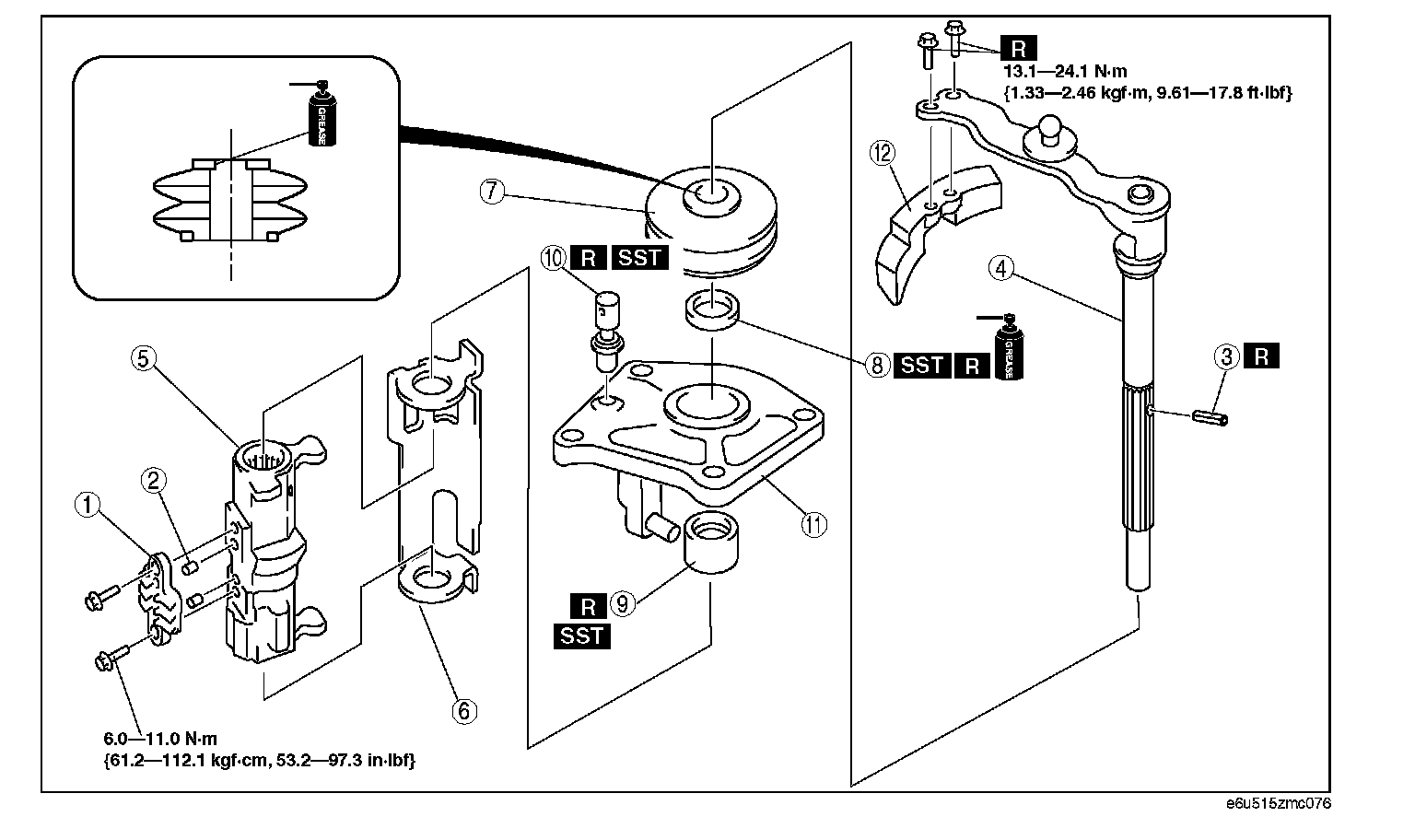

Shift Component Disassembly/Assembly (Part 1):

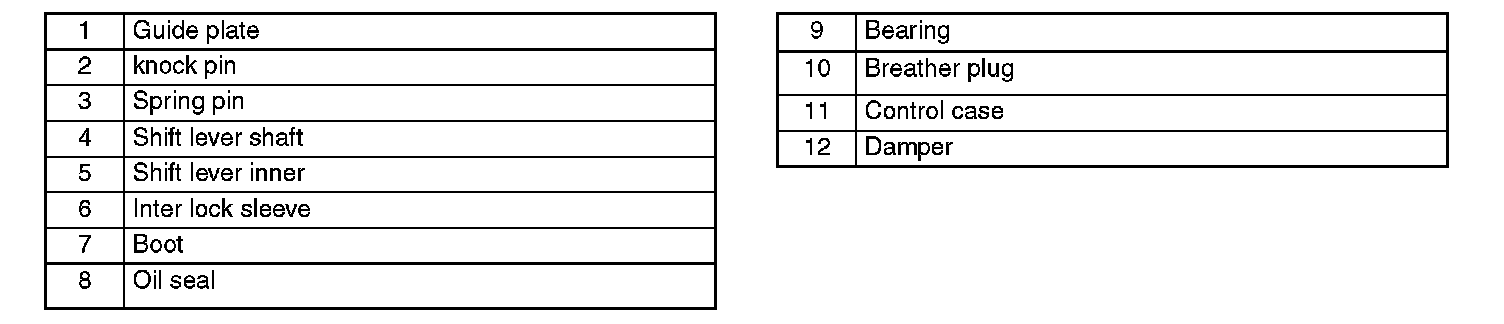

Shift Component Disassembly/Assembly (Part 2):
