Synchronizer Ring, Secondary Shaft (No.1) and Gear Inspection
Synchronizer ring, Secondary Shaft (No.1) and Gear Inspection1. Inspect the shaft for damage, abnormal wear, dents, flaking, or bending.
^ If there is any malfunction, replace the shaft.
2. Inspect the gears for damage, abnormal wear, dents, flaking, or bending.
^ If there is any malfunction, replace the gear.

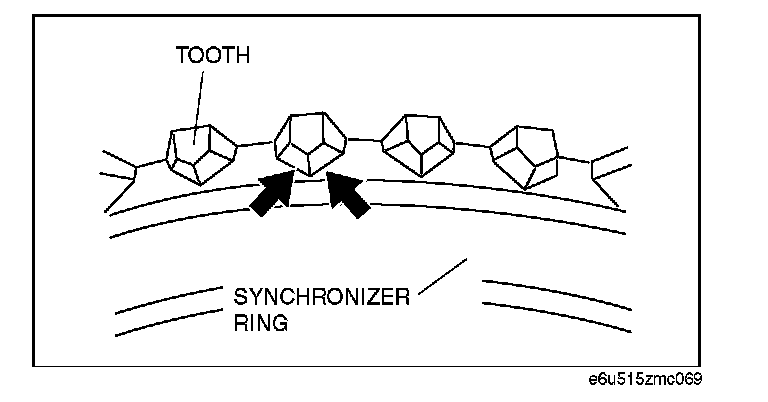

3. Inspect the synchronizer ring teeth and each rings for damage, abnormal wear, and cracks.
^ If there is a malfunction, replace the ring.
4. Inspect the tapered surface for abnormal wear and cracks.
^ If there is a malfunction, replace parts as necessary.
5. Inspect the oil passage for clogging.
^ If there is a malfunction, replace parts as necessary.
