Clutch Hub Sleeve and Shift Fork Inspection

Clutch Hub Sleeve and Shift Fork Inspection

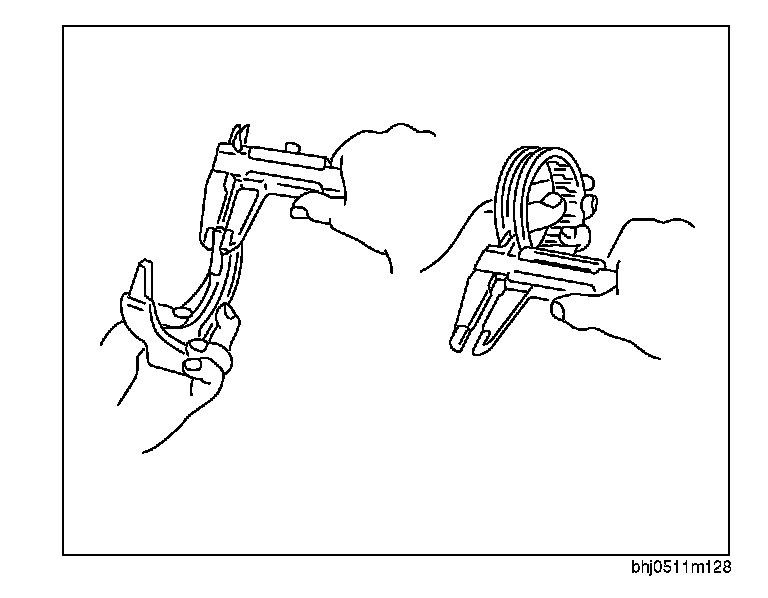

1. Measure the shift fork thickness and the groove width of the clutch hub sleeve with a vernier caliper, and calculate the clearance.

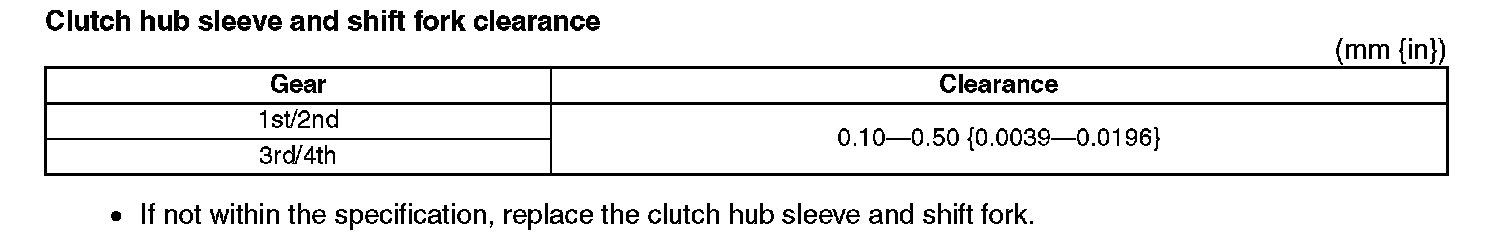

Clutch hub sleeve and shift fork clearance





^ If not within the specification, replace the clutch hub sleeve and shift fork.
