Secondary Shaft (No.1) Components Assembly

SECONDARY SHAFT (NO.1) COMPONENTS ASSEMBLY

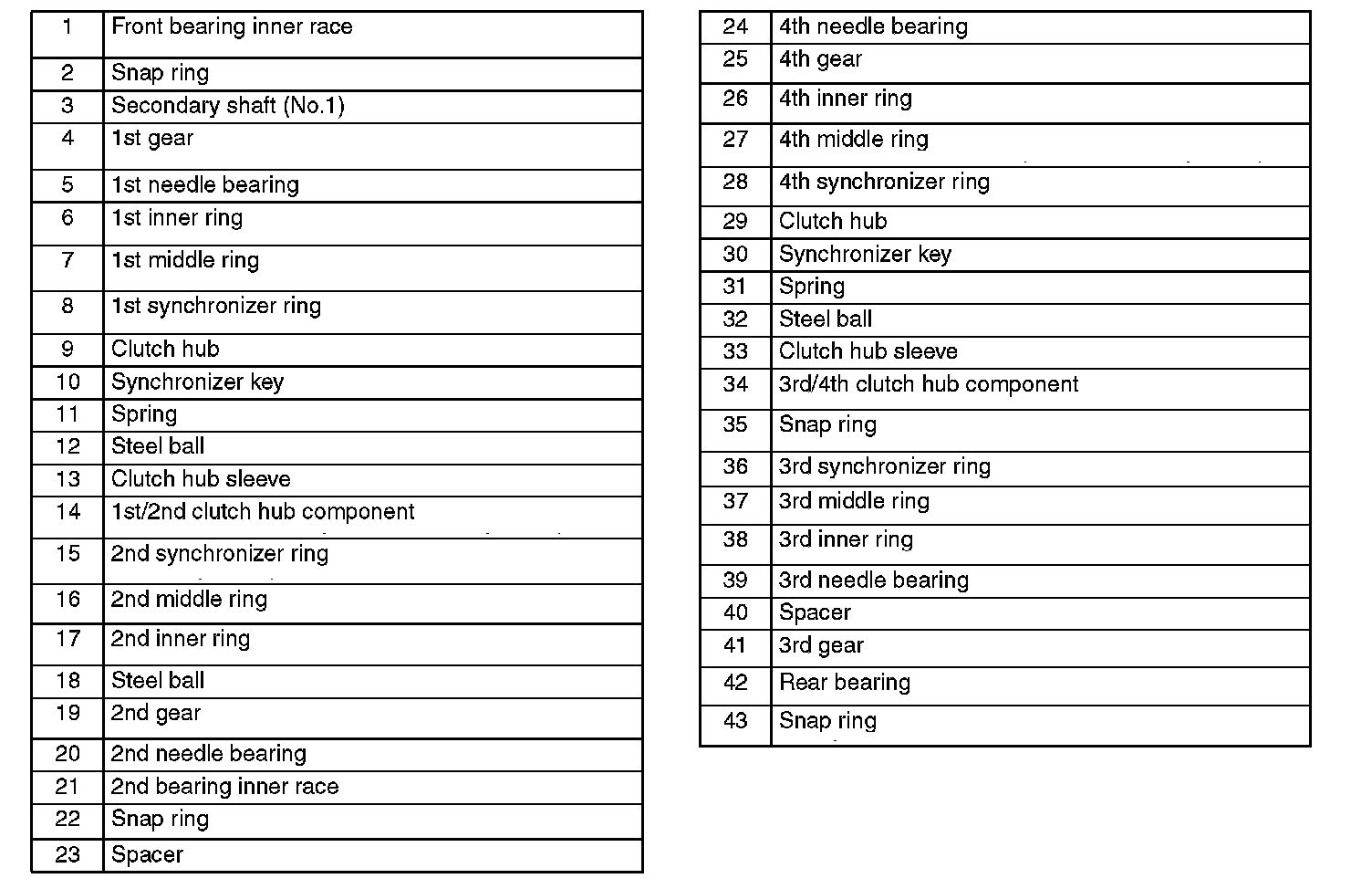

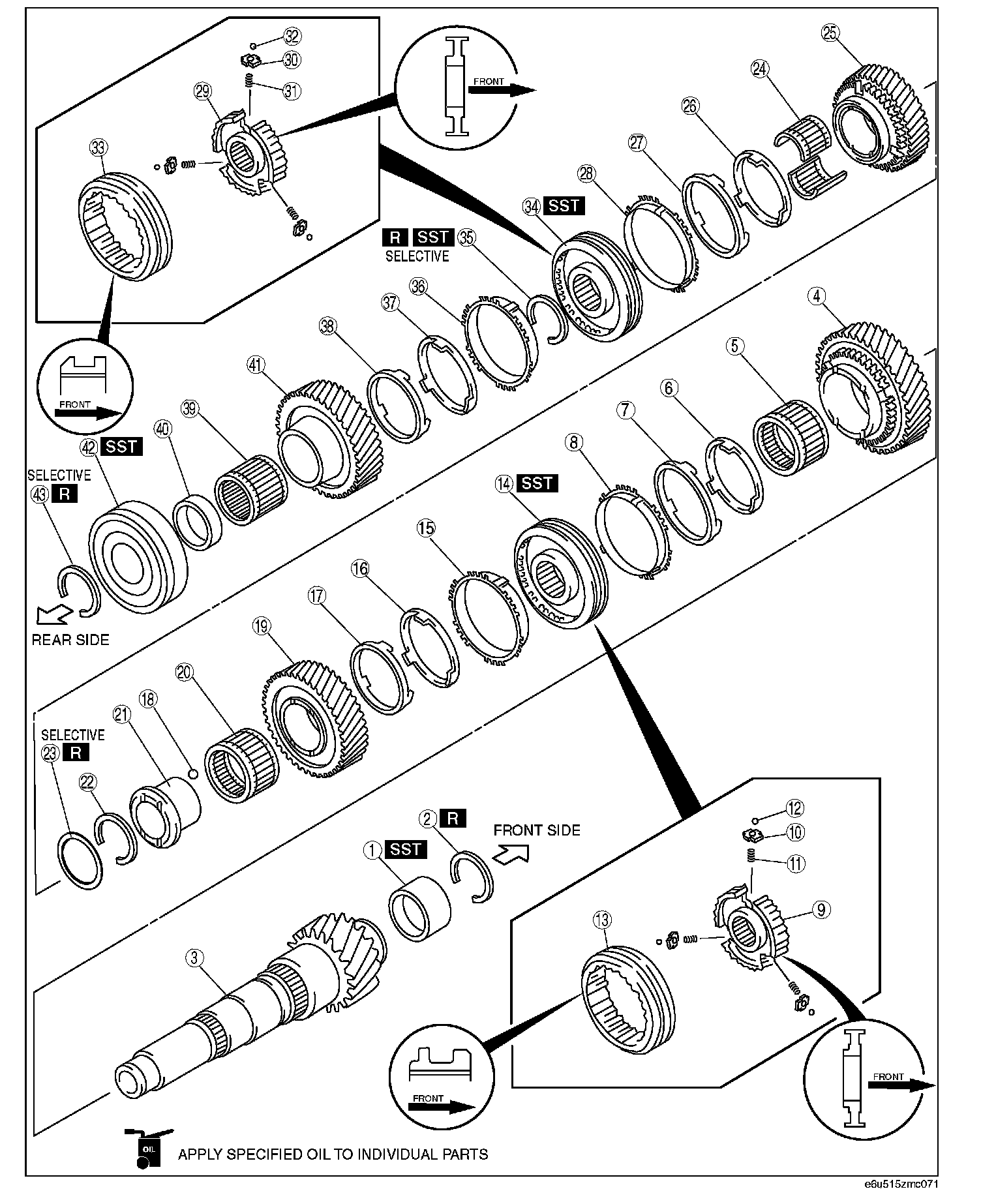

1. Assemble in the order shown in the figure.

Secondary Shaft (No.1) Components Assembly (Part 1):




Secondary Shaft (No.1) Components Assembly (Part 2):
