3RD/4TH Clutch Hub Snap Ring Assembly Note

3rd/4th Clutch Hub Snap Ring Assembly Note





1. Install a new snap ring to the secondary shaft.

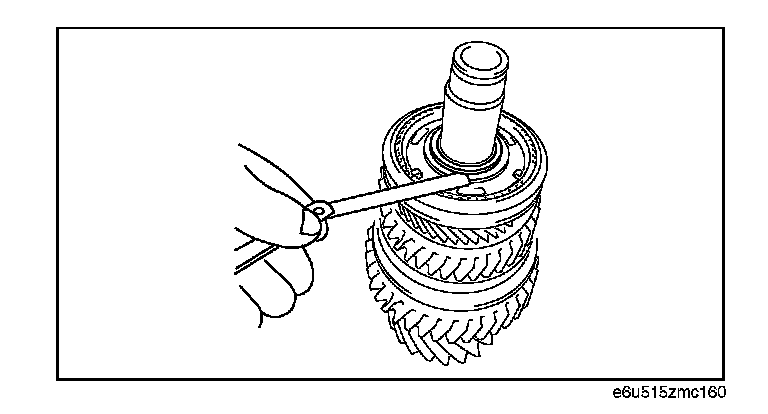

2. Measure the clearance between the 3rd/4th clutch hub and the snap ring.
^ If not within the specification, adjust it by selecting a proper snap ring from below.

Clearance between 3rd/4th clutch hub and snap ring: 0.0 - 0.1 mm (0.0000 - 0.0039 in)

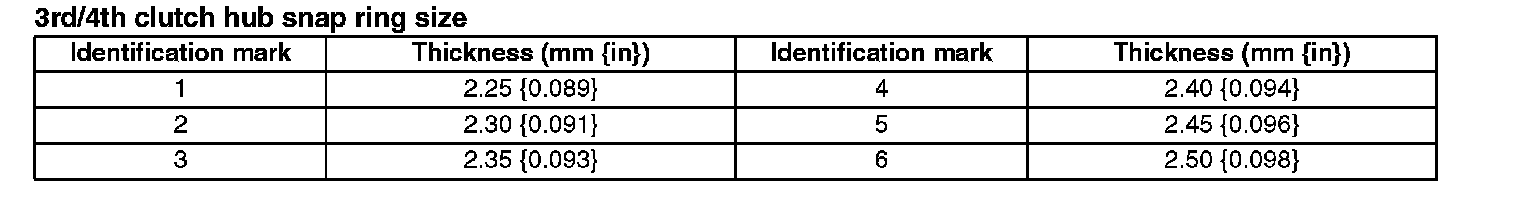

3rd/4th clutch hub snap ring size
