Synchronizer Ring, Secondary Shaft (No.2) and Gear Inspection
Synchronizer Ring, Secondary Shaft (No.2) and Gear Inspection1. Inspect the shaft for damage, abnormal wear, dents, flaking, or bending.
^ If there is a malfunction, replace the shaft.
2. Inspect the gears for damage, abnormal wear, dents, flaking, or bending.
^ If there is any malfunction, replace the gear.
3. Inspect the oil passage for clogging.
^ If there is any malfunction, replace parts if necessary.
4. Inspect the tapered surface for abnormal wear and cracks.
^ If there is any malfunction, replace parts if necessary.

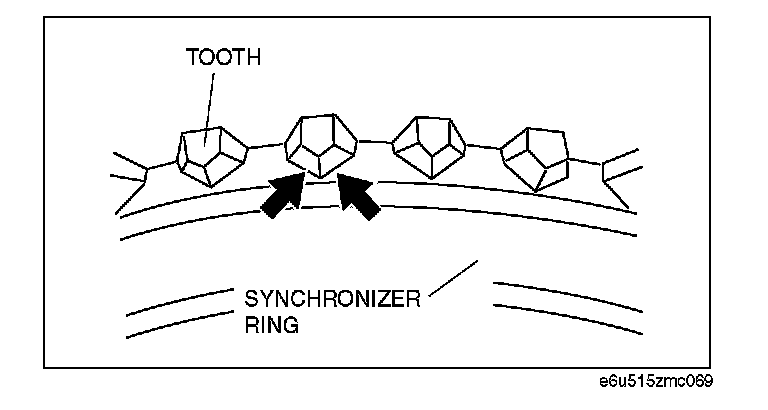

5. Inspect the synchronizer ring teeth and grooves for damage, abnormal wear, and cracks.
^ If there is any malfunction, replace the synchronizer ring.
