Clutch Hub Sleeve and Shift Fork Inspection

Clutch Hub Sleeve and Shift Fork Inspection

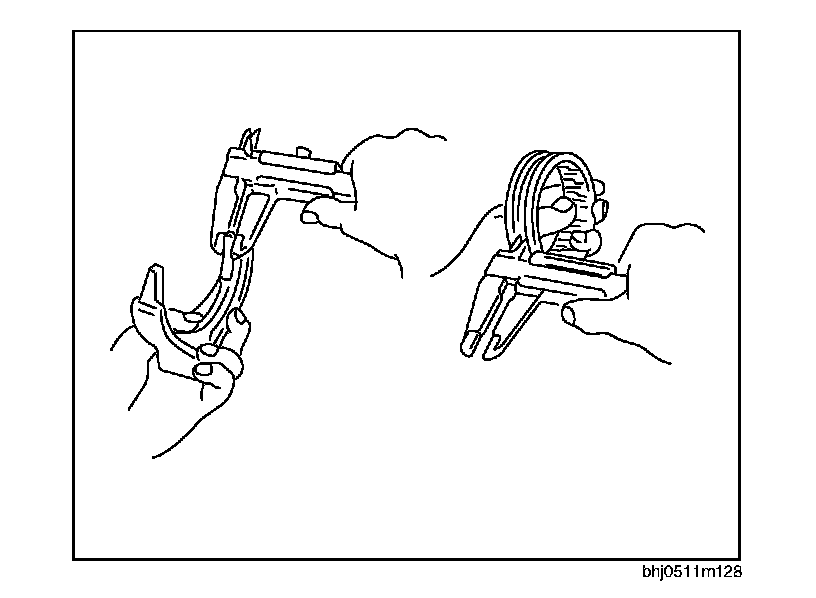

1. Measure the shift fork thickness (or groove width) and the groove width (or thickness) of the clutch hub sleeve with a vernier caliper, and calculate the clearance.

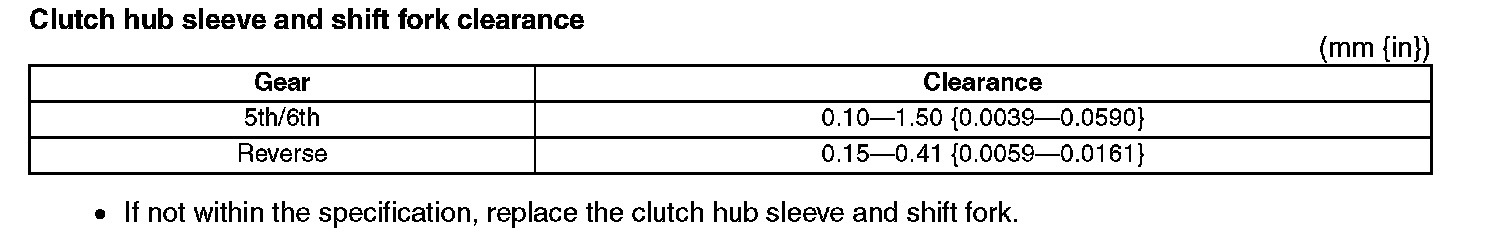

Clutch hub sleeve and shift fork clearance





^ If not within the specification, replace the clutch hub sleeve and shift fork.
