Secondary Shaft (No.2) Components Assembly

SECONDARY SHAFT (NO.2) COMPONENTS ASSEMBLY

Caution: Do not place the front bearing facing downward on a workbench after assembling the secondary shaft (NO.2) component. It may cause damage to the bearing roller guide.

1. Assemble in the order shown in the figure.

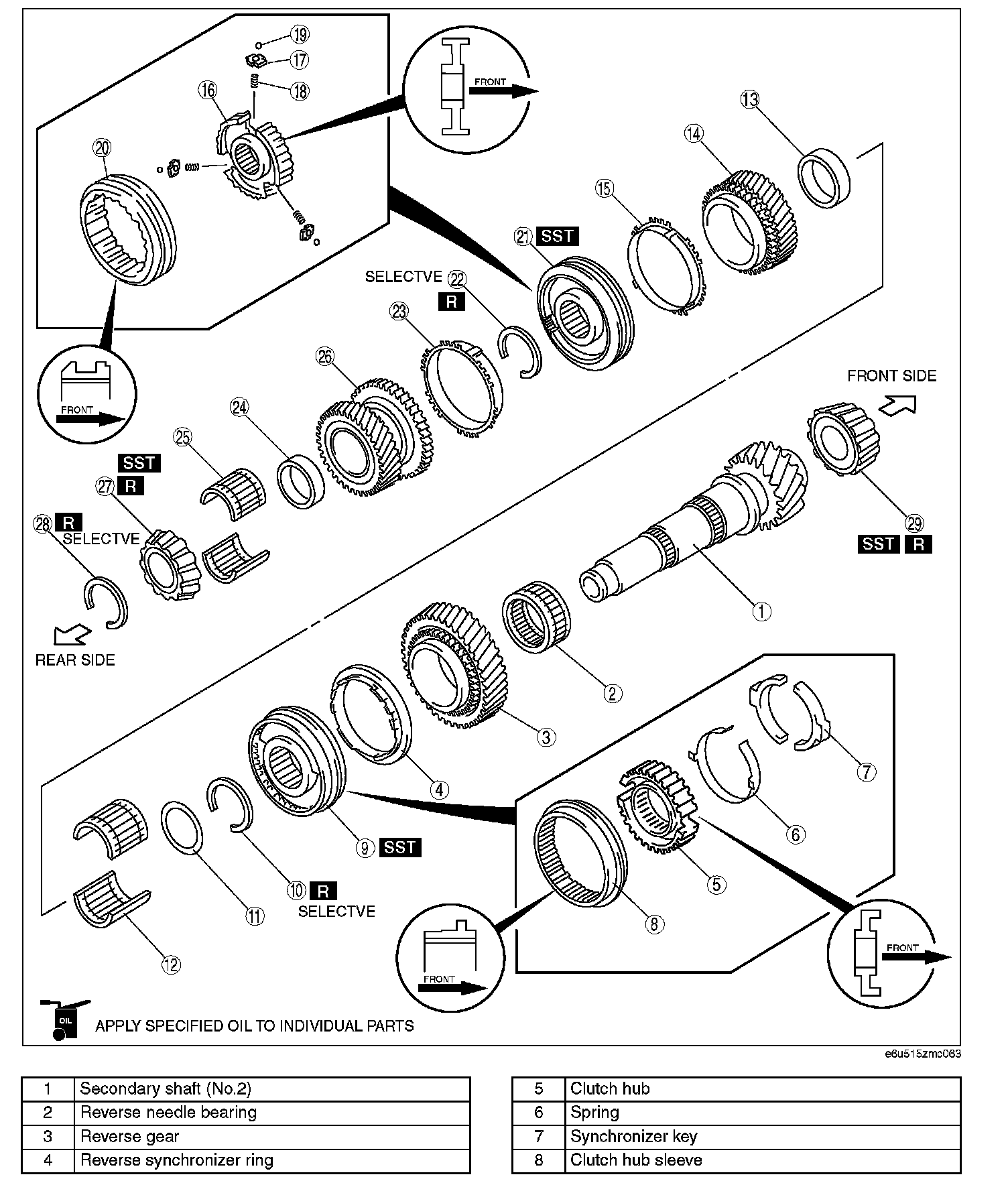

Secondary Shaft (No.2) Components Assembly (Part 1):

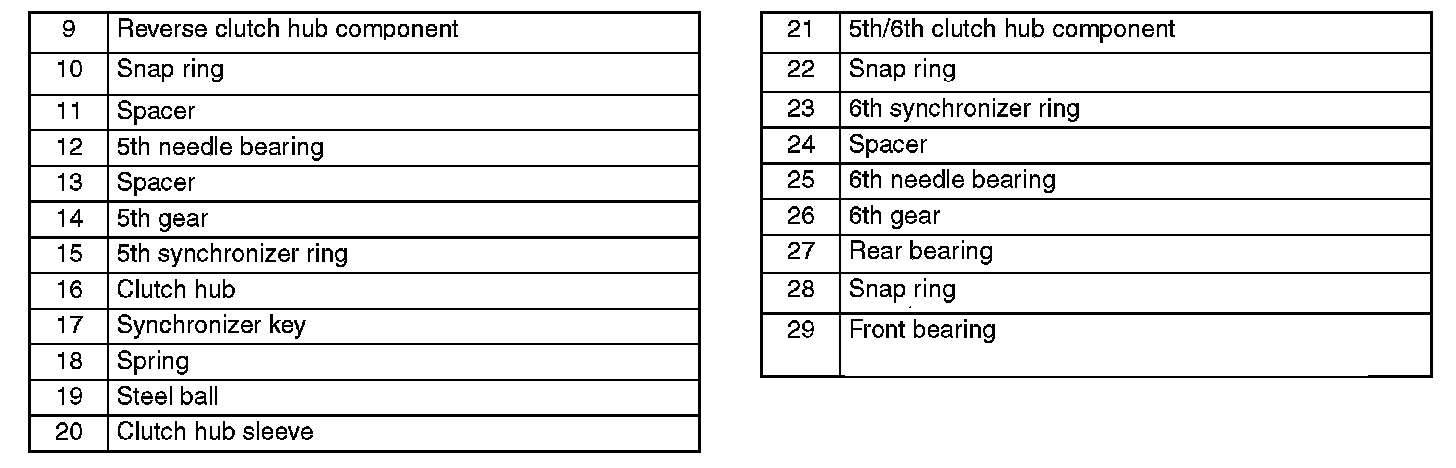

Secondary Shaft (No.2) Components Assembly (Part 2):
