Reverse Clutch Hub Snap Ring Assembly Note

Reverse Clutch Hub Snap Ring Assembly Note





1. Install a new snap ring.

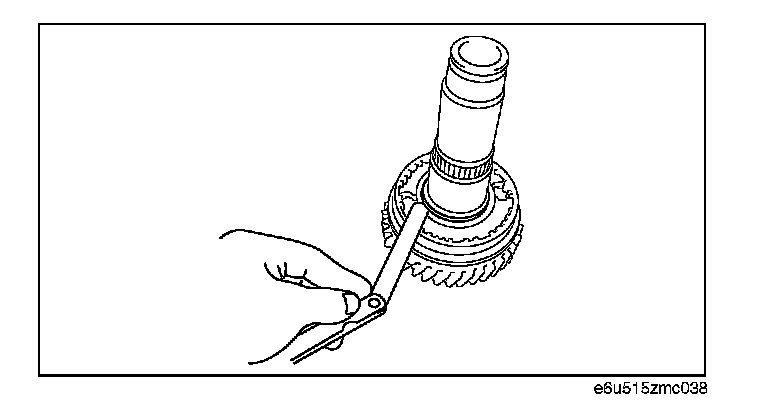

2. Measure the clearance between the reverse clutch hub and snap ring.
^ If not within the specification, select a suitable snap ring from the table below so that the clearance is within the specification.

Clearance between reverse clutch hub and snap ring: 0.0 - 0.1 mm (0.0000 - 0.0039 in)

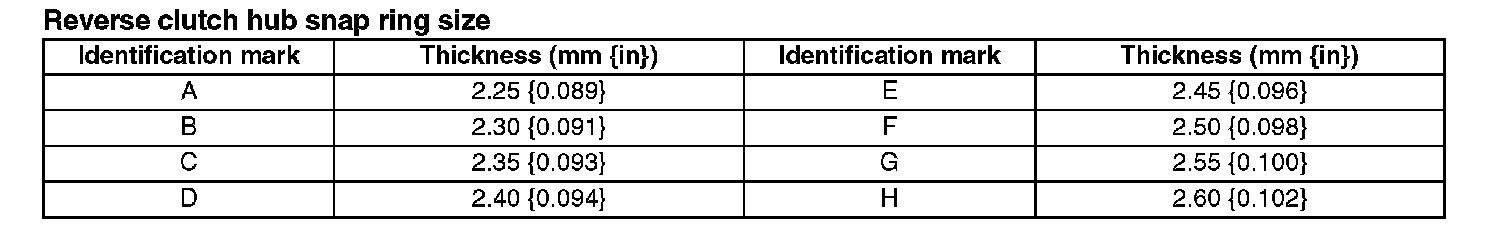

Reverse clutch hub snap ring size
