Rear Bearing Snap Ring Assembly Note

Rear Bearing Snap ring Assembly Note





1. Install a new snap ring to the secondary shaft.

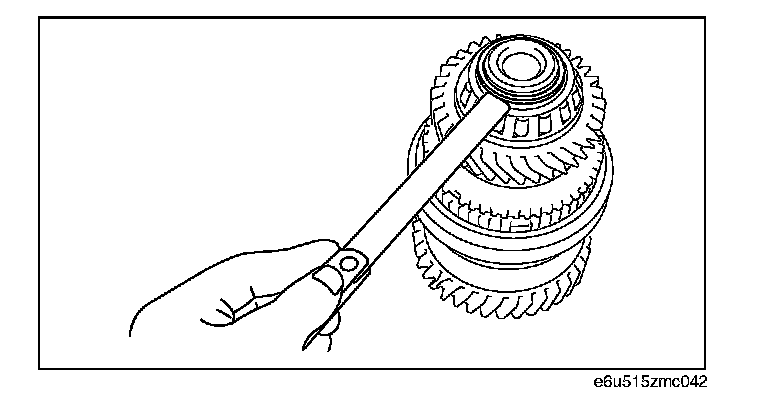

2. Measure the clearance between the snap ring and the rear bearing inner race.
^ If not within the specification, adjust it by selecting a proper snap ring from below.

Clearance between secondary shaft (NO.2) rear bearing inner race and snap ring: 0.0 - 0.1 mm (0.0000 - 0.0039 in)

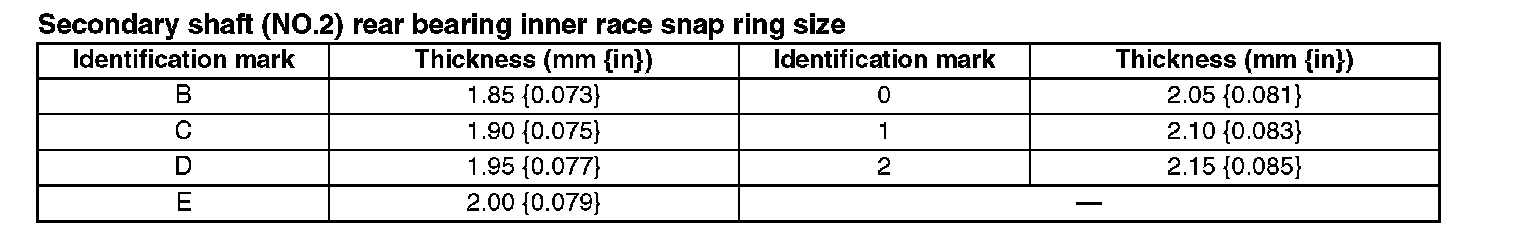

Secondary shaft (NO.2) rear bearing inner race snap ring size
