Differential Assembly

DIFFERENTIAL ASSEMBLY

Caution: Do not place the bearing (ring gear side) facing downward on a workbench after assembling the differential component. It may cause damage to the bearing roller guide.

1. Assemble in the order shown in the figure.

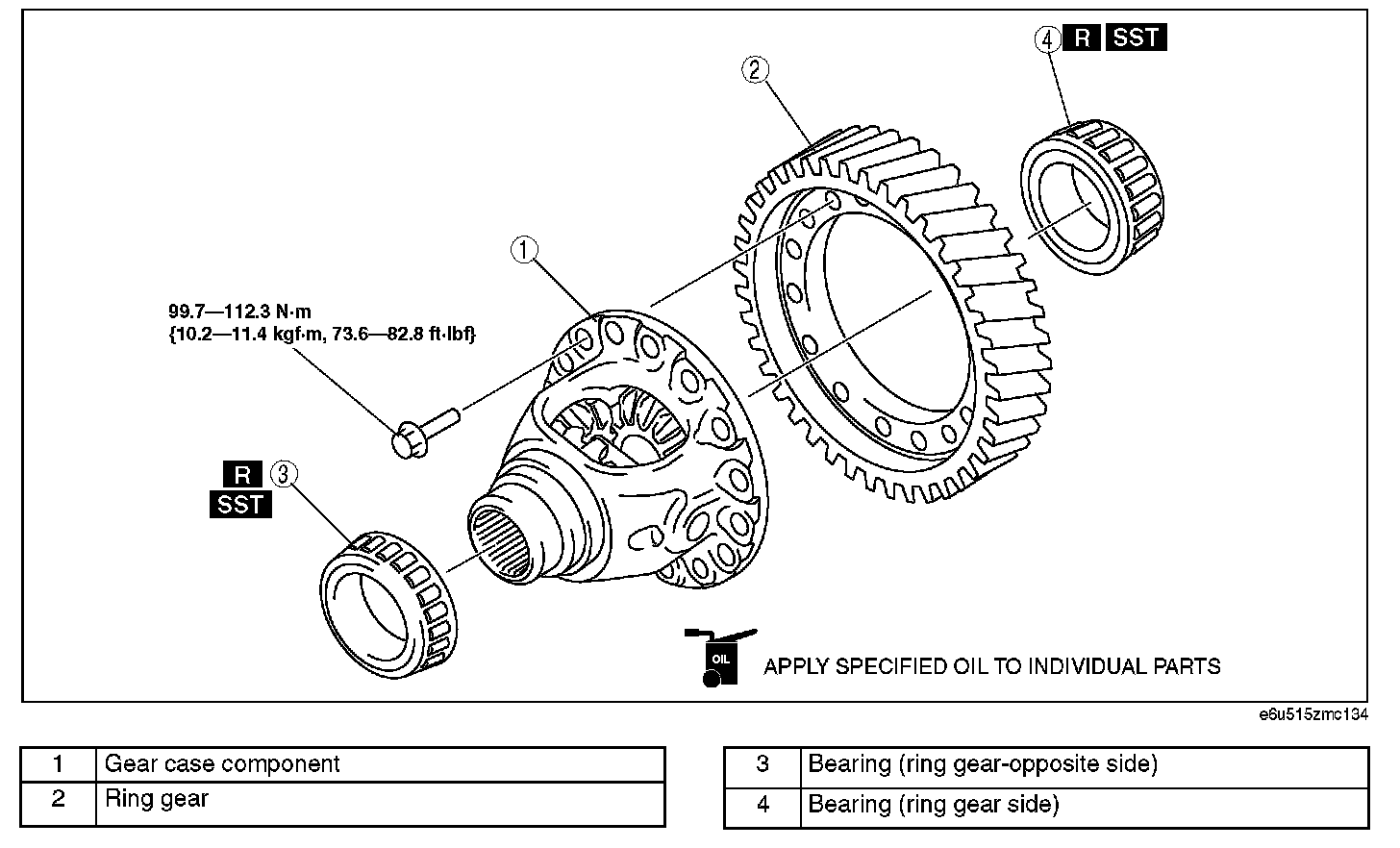

Differential Assembly:
