AWD Solenoid Inspection

AWD SOLENOID INSPECTION





1. Disconnect the negative battery cable.
2. Disconnect the AWD solenoid connector.

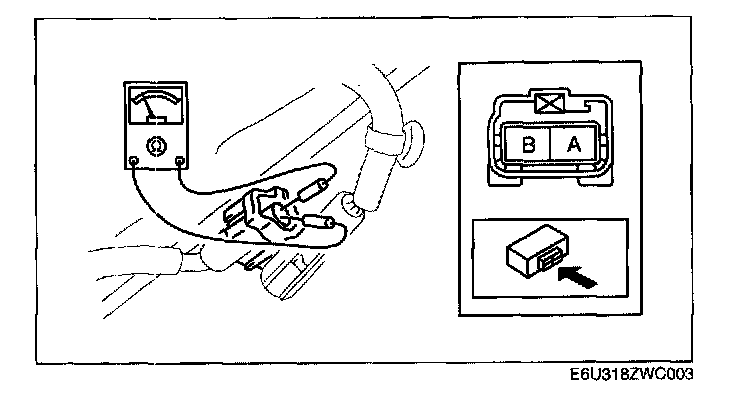

3. Measure resistance between AWD solenoid connector terminals A and B.
^ If the resistance is not within the specification, replace the coupling unit.
AWD solenoid resistance 1.5 - 2.0 ohms (Rear differential oil temperature at 20°C (68°F))
4. Connect the AWD solenoid connector.
5. Connect the negative battery cable.
