No.5 TCS Off Light and TCS Indicator Light Do Not Illuminate With Ignition Key to on [ABS/TCS]

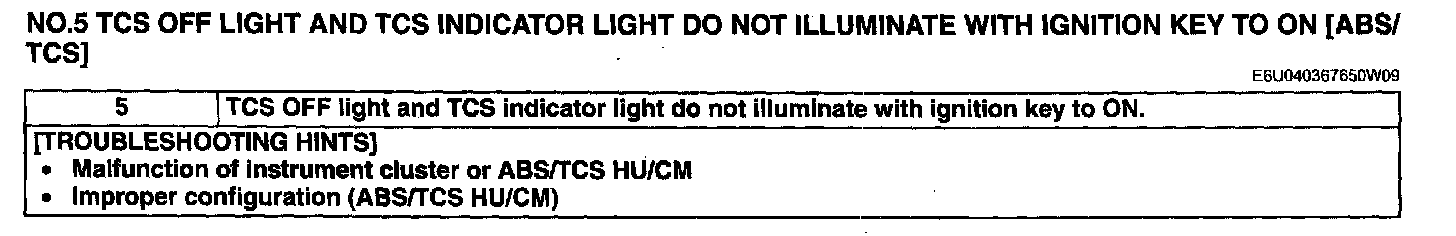

NO.5 TCS OFF LIGHT AND TCS INDICATOR LIGHT DO NOT ILLUMINATE WITH IGNITION KEY TO ON [ABS/TCS]

NO.5 TCS OFF LIGHT AND TCS INDICATOR LIGHT DO NOT ILLUMINATE WITH IGNITION KEY TO ON [ABS/TCS]:

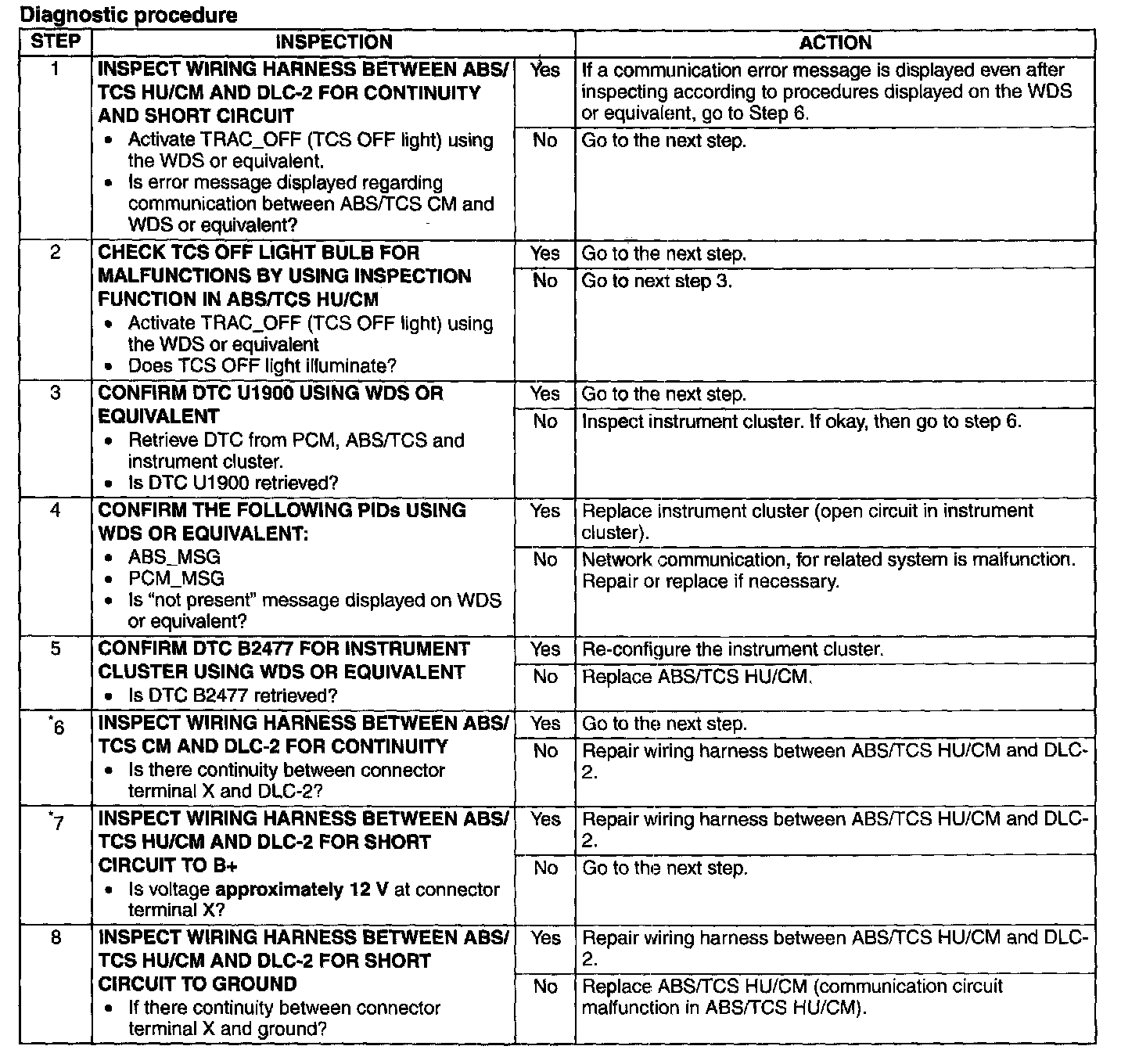

Diagnostic procedure

Step 1-Step 8:

^ When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harness are connected correctly and undamaged.
