PID/Data Monitor Table/Active Command Modes Table

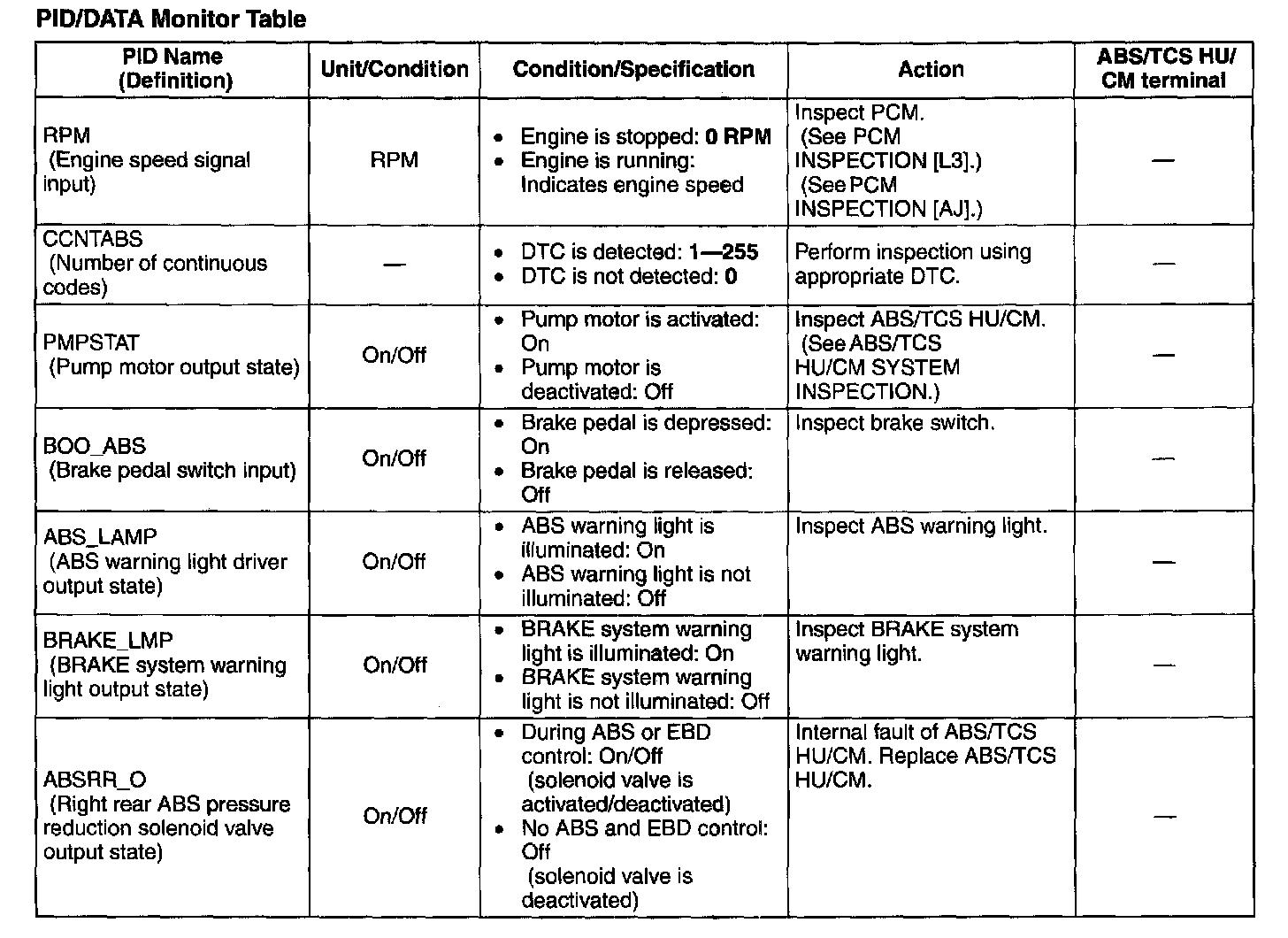

PID/DATA Monitor Table (part 1):

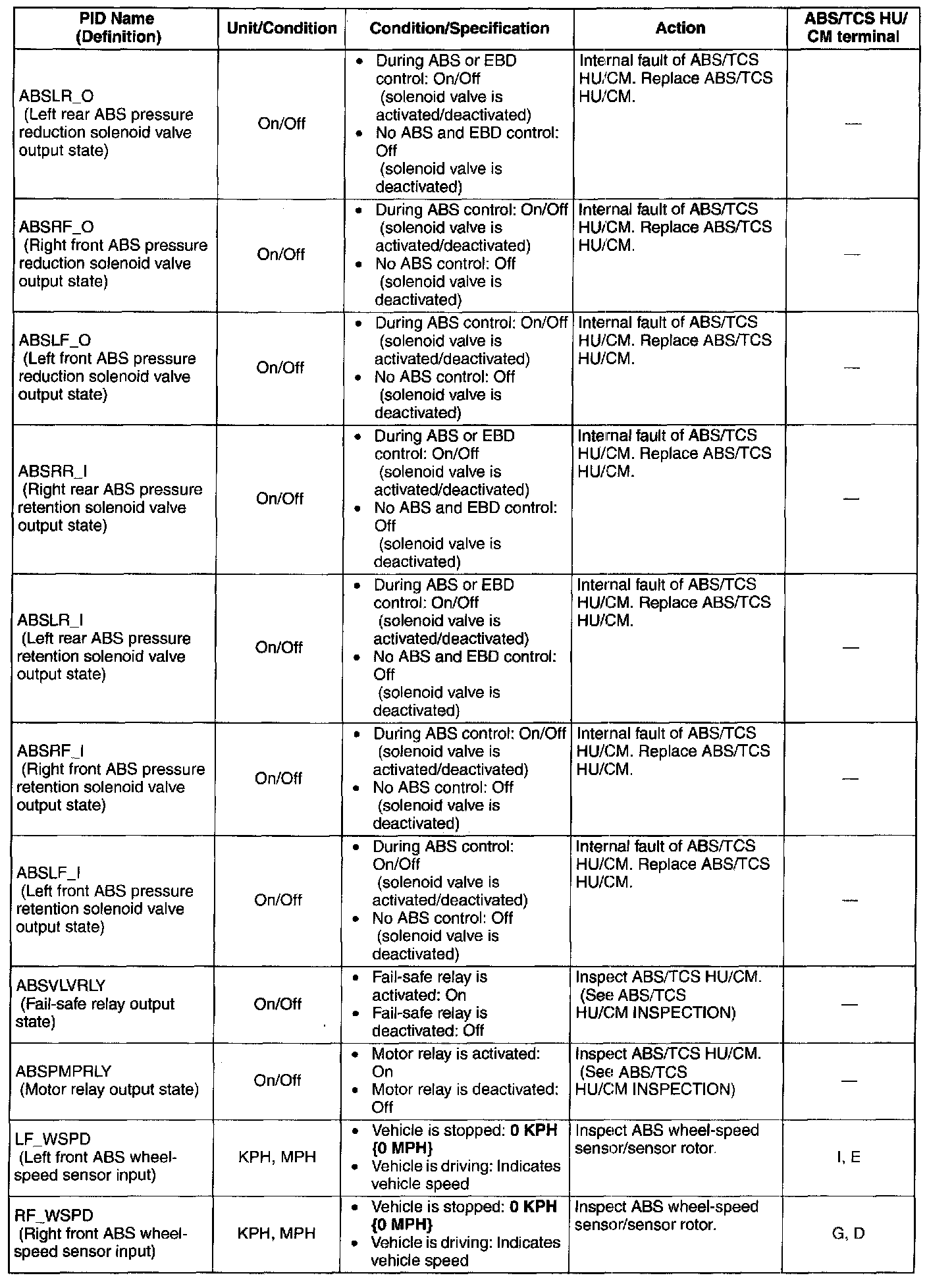

PID/DATA Monitor Table (part 2):

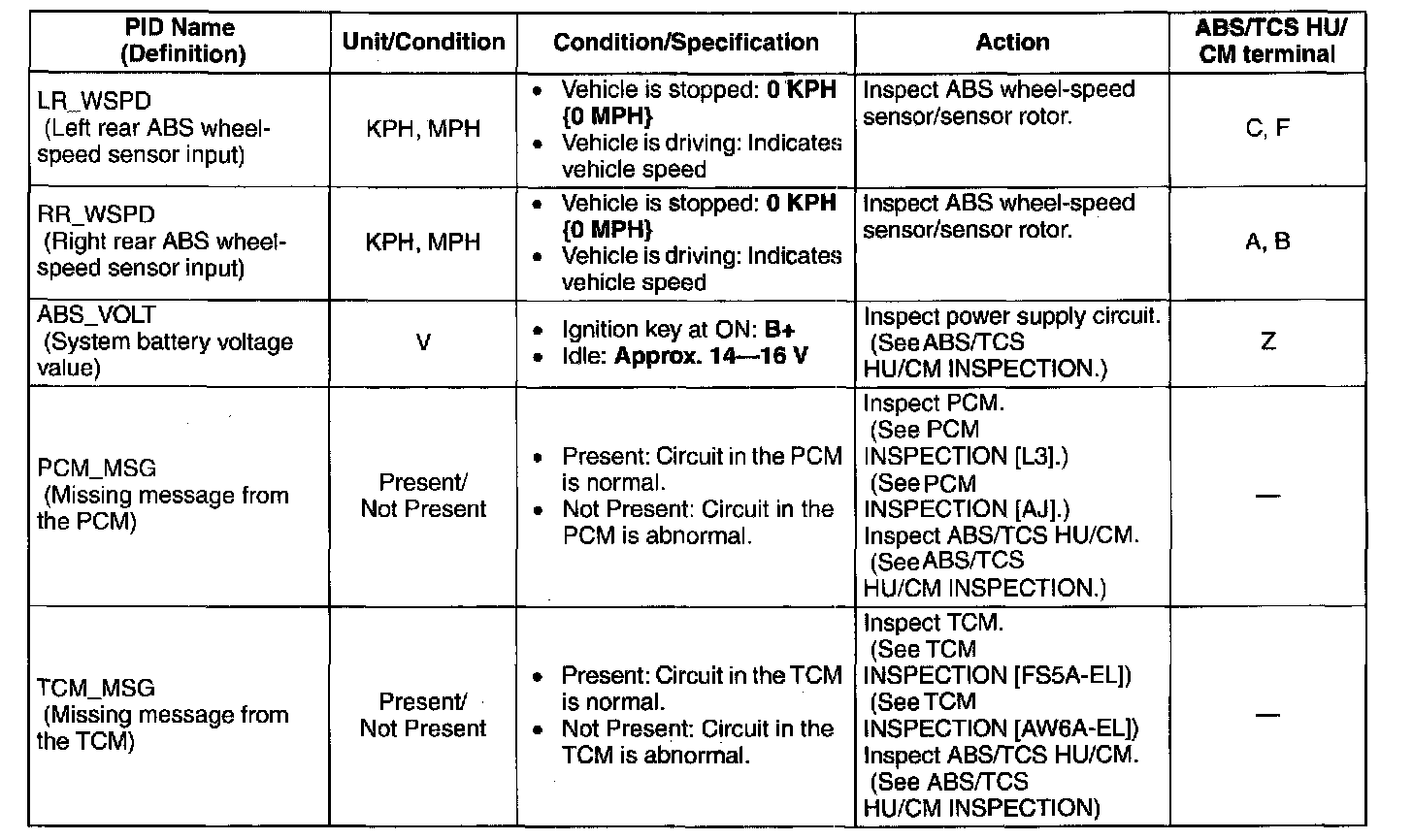

PID/DATA Monitor Table (part 3):

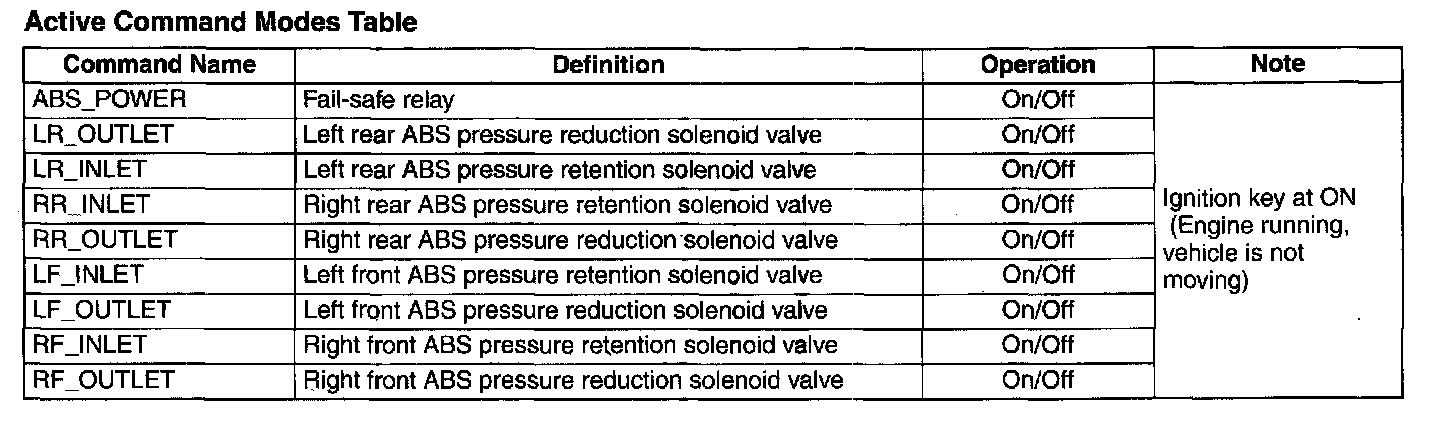

Active Command Modes Table:
