Front Door Removal/Installation

FRONT DOOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. To remove the front door hinge, remove the front fender panel.
3. To remove the checker, remove the front door speaker.

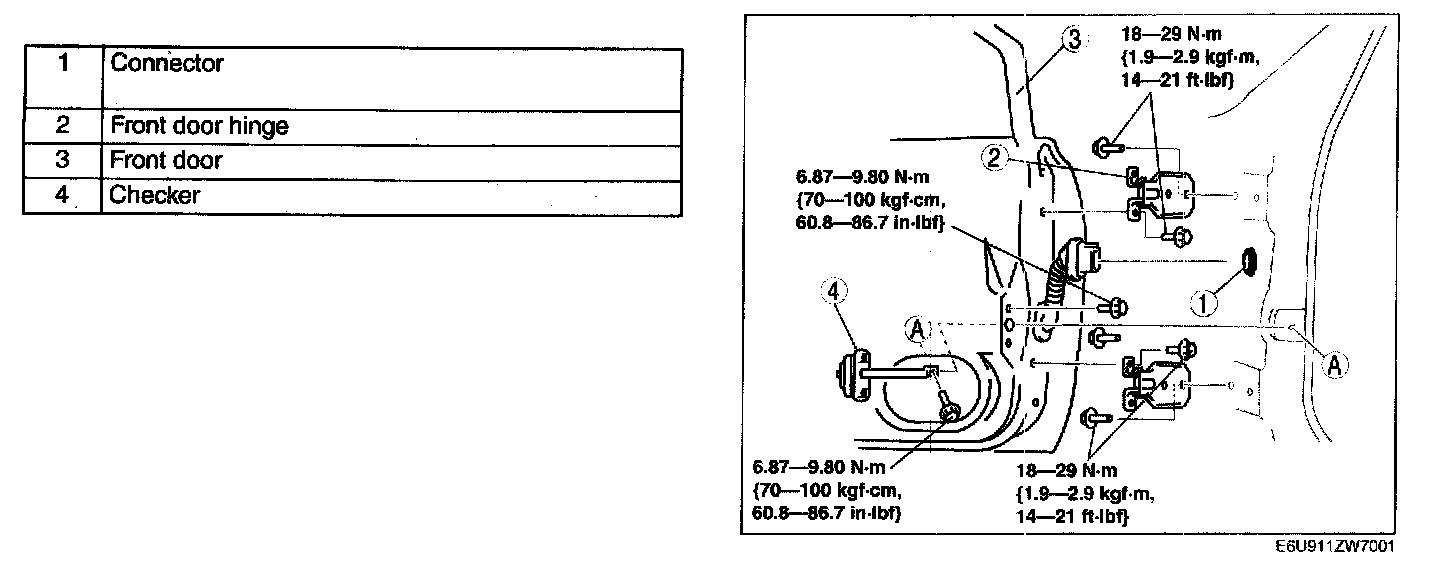

4. Remove in the order indicated in the table.






5. Install in the reverse order of removal.
6. Adjust the front door.

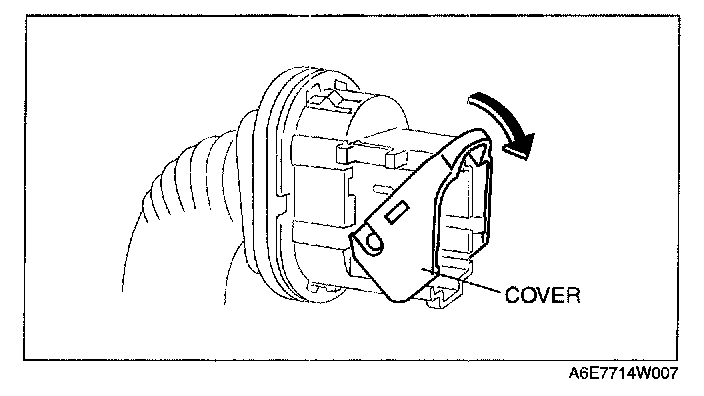

Connector Removal Note






1. Pull down the cover in the direction of the arrow and disconnect the connector.
