Rear Door Removal/Installation

REAR DOOR REMOVAL/INSTALLATION

WARNING: The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery cable or work carefully, avoiding excessive impact to the lower part of the B-pillar.

1. Disconnect the negative battery cable.
2. To remove the checker, remove the rear door speaker.

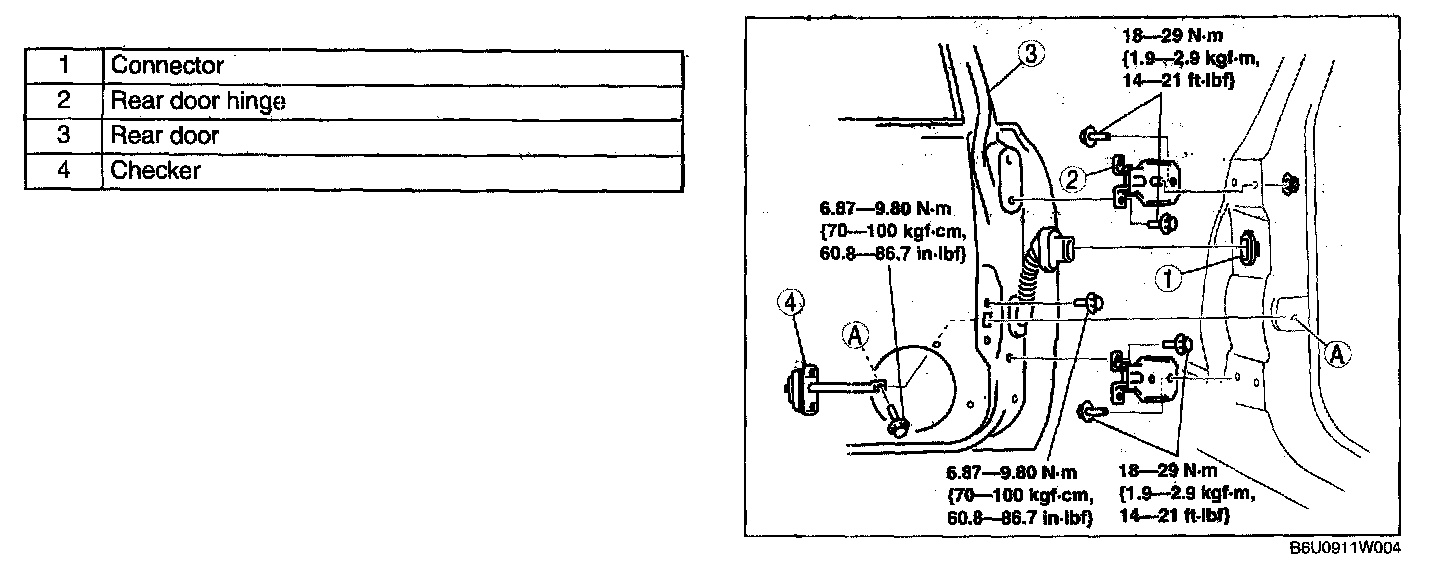

3. Remove in the order indicated in the table.






4. Install in the reverse order of removal.
5. Adjust the rear door.
