Rear Door Unit Removal/Installation

REAR DOOR UNIT REMOVAL/INSTALLATION

1. Remove the rear door glass.
2. Remove the inner handle.
3. Remove the rear door speaker.
4. Disconnect the power window motor connector and rear door lock actuator connector.
5. Remove the rear door harness from the rear door unit.

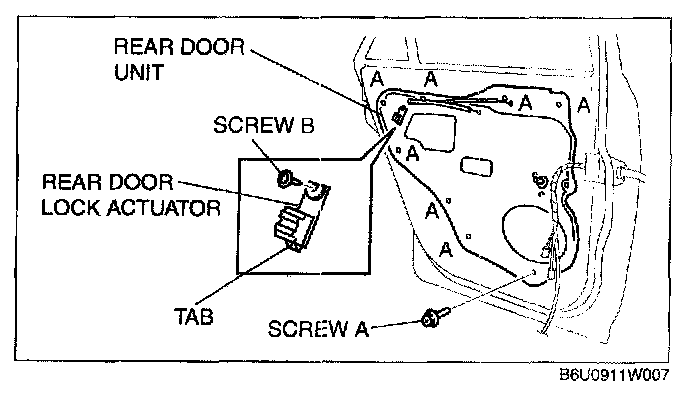

6. Remove screws A.
7. Remove the screw B.
8. Remove the rear door lock actuator tab from the rear door unit.
9. Pull the rear door unit slightly outward, and while keeping the power window regulator from catching on the rear door, remove the rear door unit from the rear door.
10. Pull out the inner handle cable and door lock knob cable from the hole.

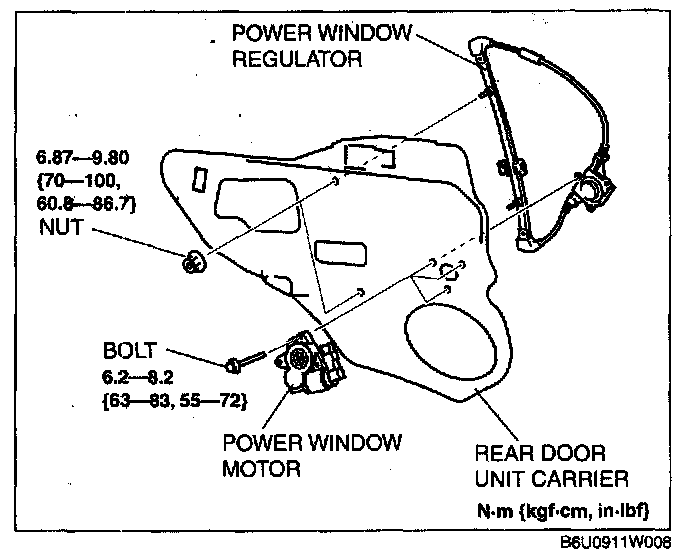

11. Remove the power window motor and power window regulator from the rear door unit carrier.
12. Install in the reverse order of removal.
