Removal and Installation

INSTRUMENT CLUSTER REMOVAL/INSTALLATION

CAUTION: When replacing the instrument cluster, the configuration procedure must be performed before removing the instrument cluster. If the configuration procedure is not performed before removing the instrument cluster, it is possible that the instrument cluster will not operate normally.

1. Configure the instrument cluster (only when replacing it).
2. Disconnect the negative battery cable.
3. Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
4. Pull the steering wheel toward you.
5. Remove the meter hood.

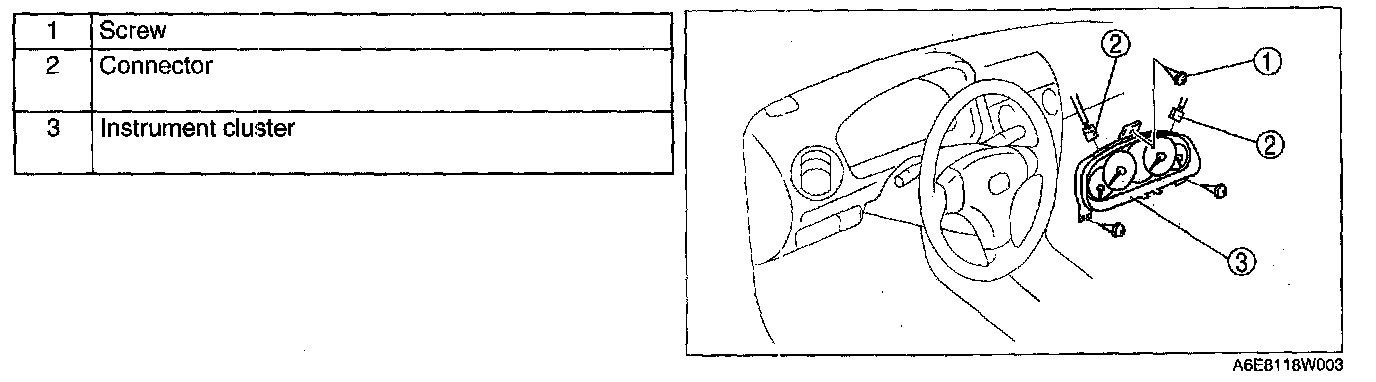

6. Remove in the order indicated in the above table.




7. Install in the reverse order of removal.

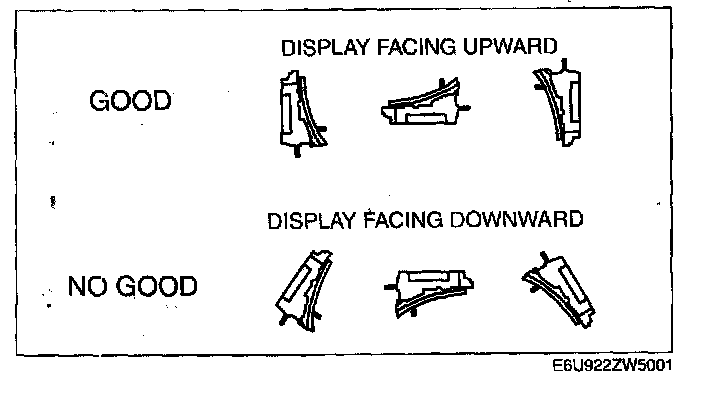

CAUTION: The removed instrument cluster should be placed with the display side up to prevent grease from leaking from the meters.

Connector Removal Note




1. Disconnect the connectors.

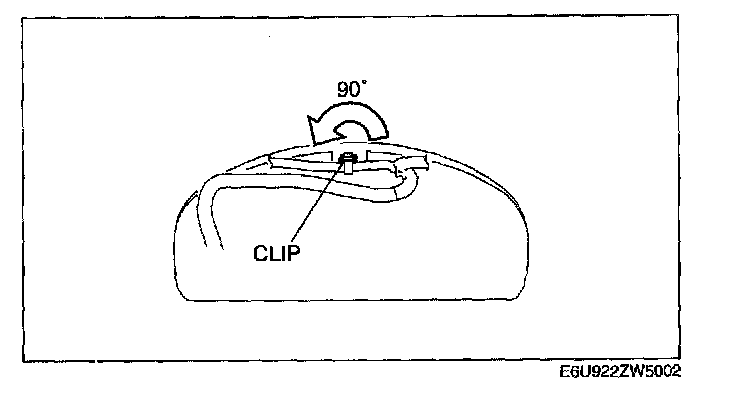

2. Rotate the clip 90 degrees, then remove the clip from instrument cluster.

Instrument Cluster Removal Note

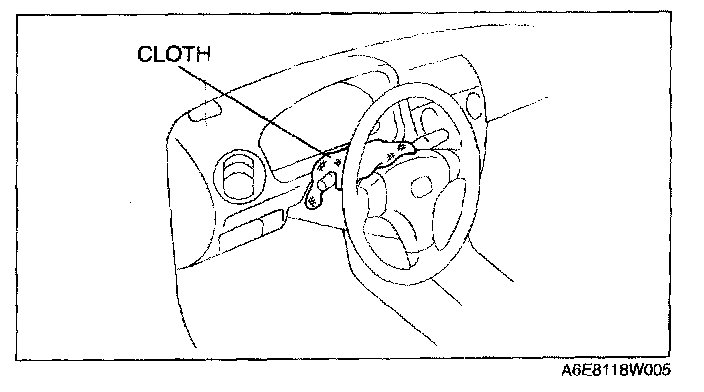

1. When removing the instrument cluster, in order to prevent damage to the lens, cover the steering shaft with a cloth.
