Crankshaft Main Bearing

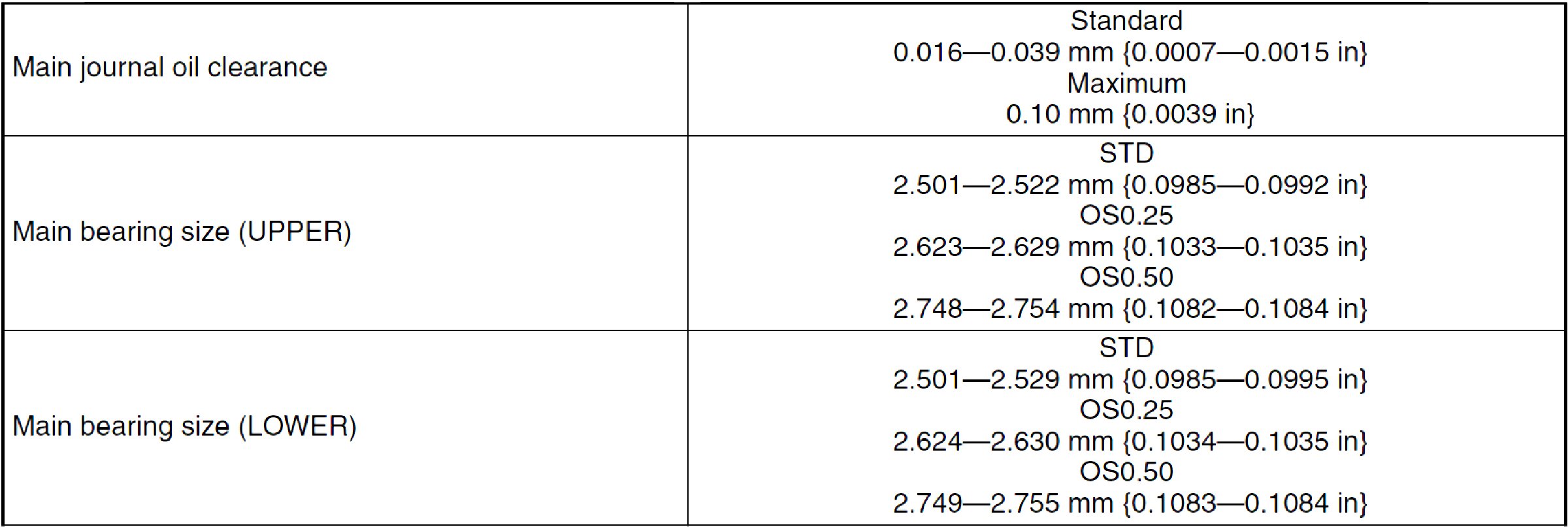

Specifications
Tightening Procedure
(1) Apply engine oil to all bolts.
(2) 3 - 7 Nm (30.6 - 71.3 kgf-cm, 26.6 - 61.9 in lbf)
(3) 23 - 27 Nm (2.4 - 2.7 kgf-m, 17 - 19.9 ft lbf)
(4) 38 - 42 Nm (3.9 - 4.2 kgf-m, 28.1 - 30.9 ft lbf)
(5) Loosen all the bolts (until bolts are torque-free).
(6) 3 - 7 Nm (30.6 - 71.3 kgf-cm, 26.6 - 61.9 in lbf)
(7) 18 - 22 Nm (1.9 - 2.2 kgf-m, 13.3 - 16.2 ft lbf)
(8) 87.5° - 92.5°
