Oil Pump: Service and Repair

OIL PUMP REMOVAL/INSTALLATION [L-3 WITH TC]





Warning:
- Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
- A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
- Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Drain the engine oil.
4. Remove the engine front cover.
5. Remove the oil pan.

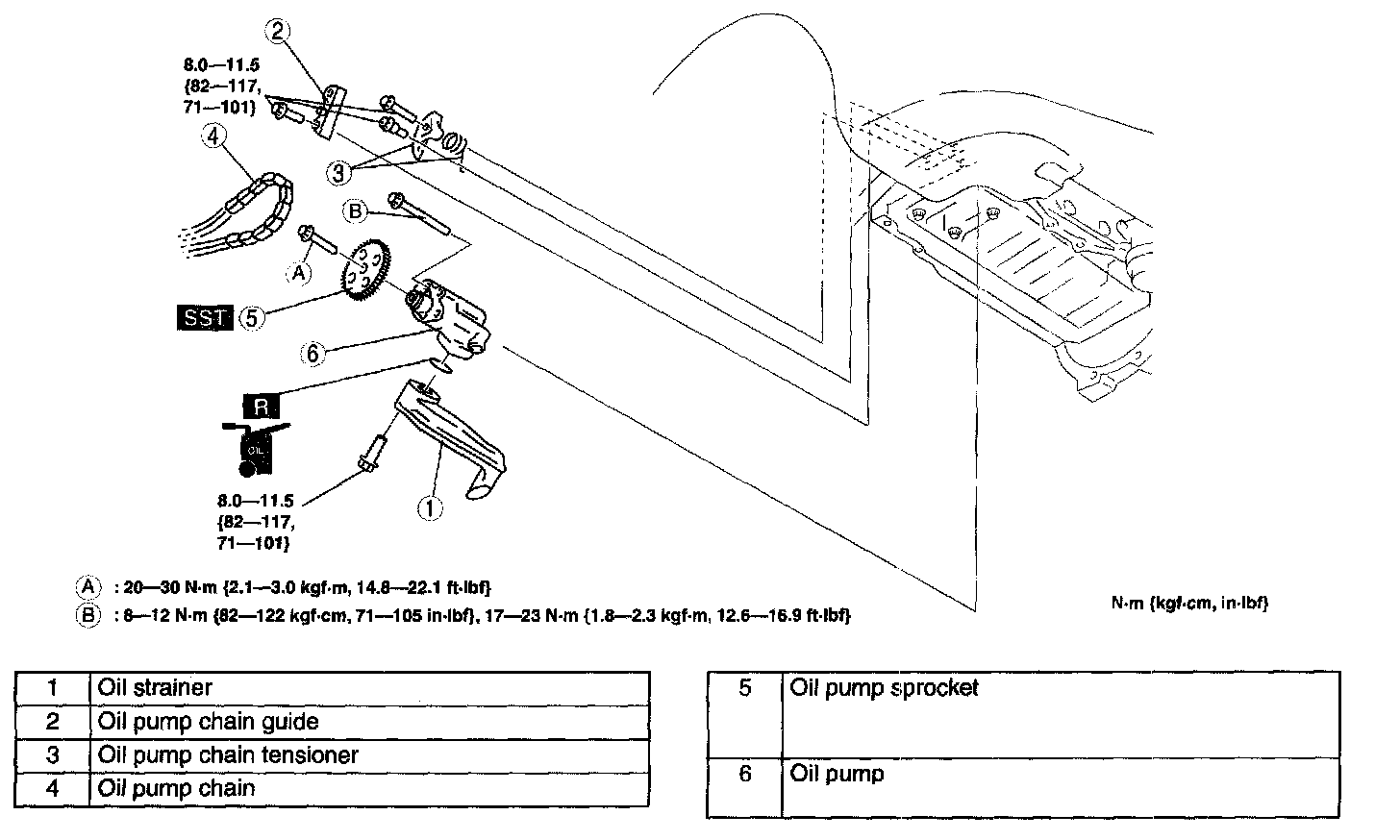

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
8. Refill with the specified type and amount of the engine oil.
9. Start the engine and confirm that there is no oil leakage.
- If there is oil leakage, repair or replace the applicable part.

10. Inspect the oil level.
11. Inspect the oil pressure.

Oil Pump Sprocket Removal/installation Note

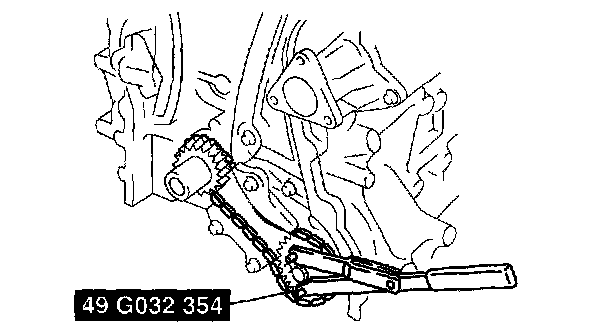

1. Install the SST to the oil pump sprocket to stop the oil pump from rotating.

Oil Pump Installation Note





1. Tighten the oil pump bolts in two steps in the order shown in the figure.
Tightening torque
Step 1: 8 - 12 Nm (82 - 122 kgf-cm, 71 - 105 inch lbs.)
Step 2: 17 - 23 Nm (1.8 - 2.3 kgf-m, 12.6 - 16.9 ft. lbs.)
