Radiator Cooling Fan Motor Relay: Testing and Inspection

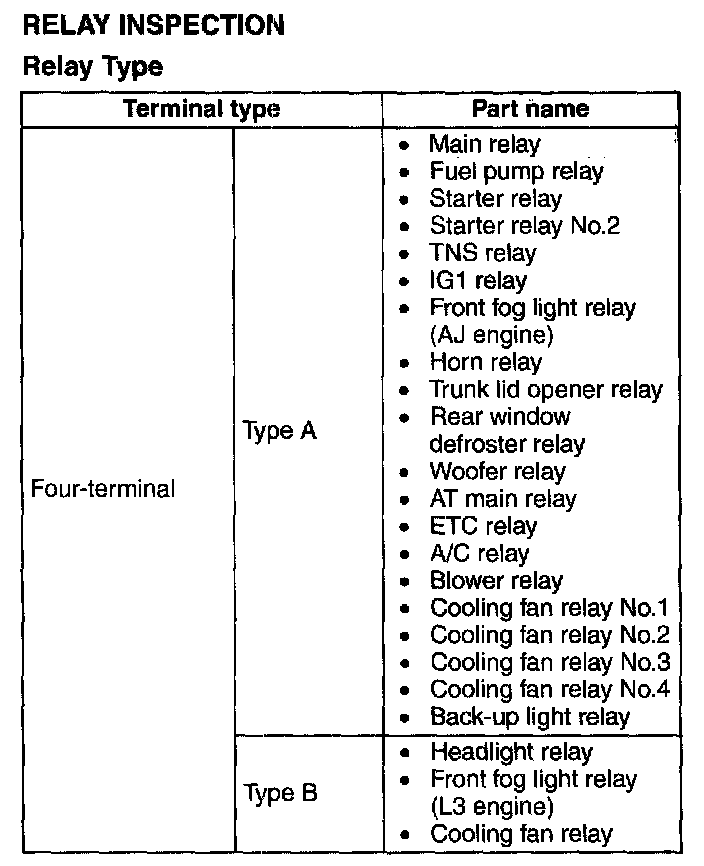

RELAY INSPECTION

Relay Type





Four-terminal

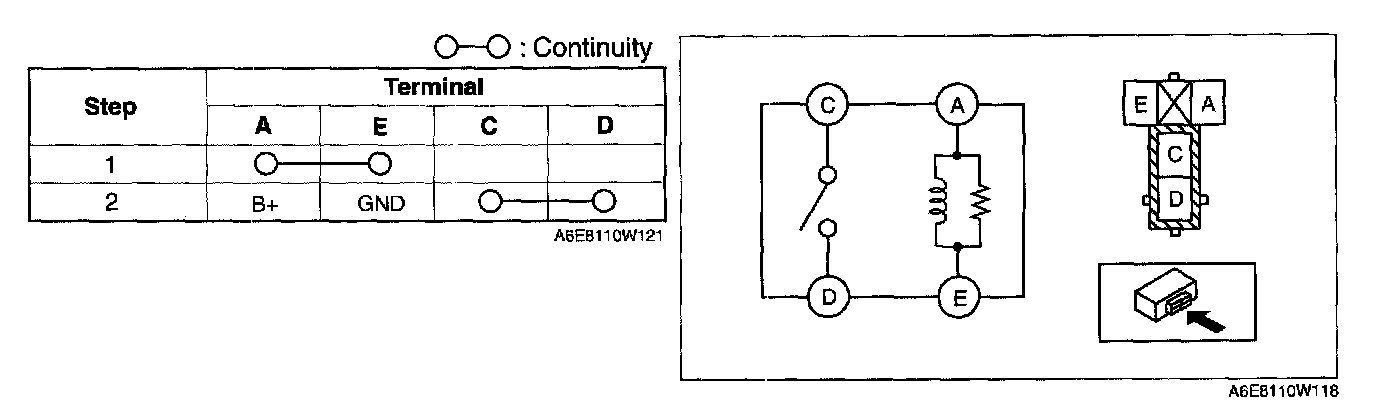

Type A




1. Remove the relay.
2. Inspect for continuity between the relay terminals.
- If not as specified, replace the relay.

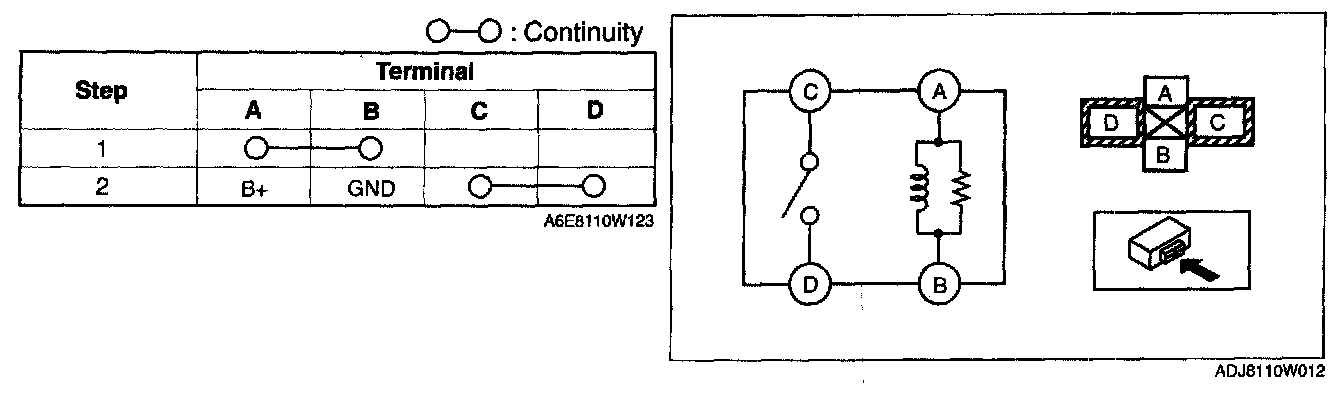

Type B




1. Remove the relay.
2. Inspect for continuity between the relay terminals.
- If not as specified, replace the relay.
