Cabin Temperature Sensor / Switch: Service and Repair

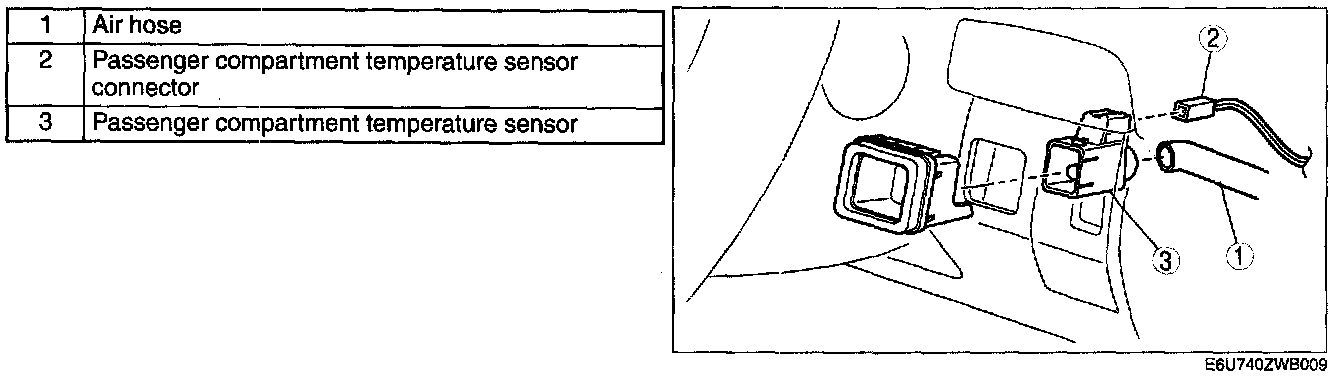

PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the lower panel.
3. Remove the cowl grille.




4. Remove in the order indicated in the above table.
5. Install in the reverse order of removal.
