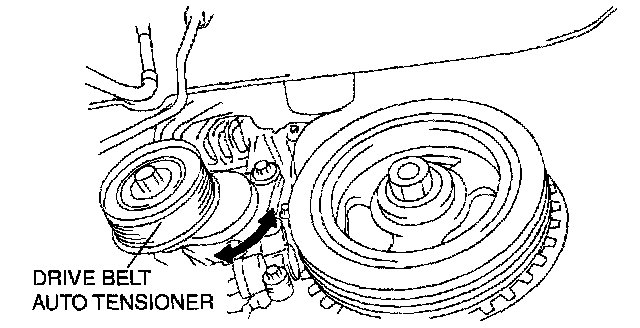

DRIVE BELT AUTO TENSIONER INSPECTION [L3 WITH TC]





1. Remove the drive belt.
2. Verify that the drive belt auto tensioner moves smoothly in the operational direction.
- Replace the drive belt auto tensioner if necessary.

3. Rotate the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.
- Replace the drive belt auto tensioner if necessary.

4. Install the drive belt.
