Rear Crankshaft Main Bearing Seal: Service and Repair

REAR OIL SEAL REPLACEMENT [L3 WITH TC]





1. Remove the flywheel.

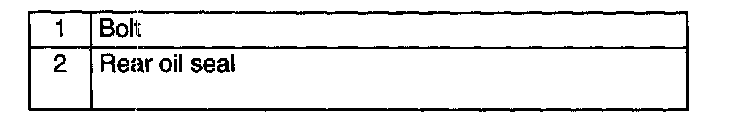

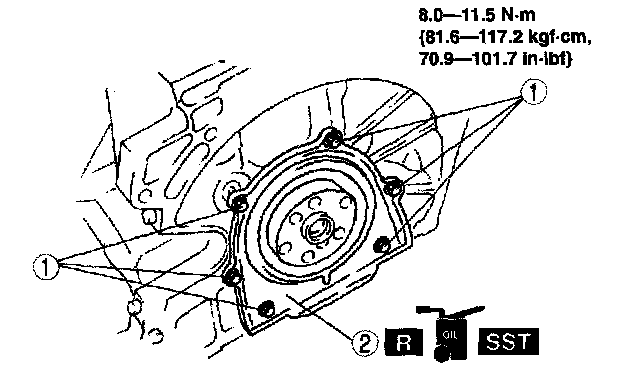

2. Remove in the order indicated in the figure.
3. Install in the reverse order of removal.





Rear Oil Seal Installation Note





1. Apply silicone sealant to the areas shown in the figure.

Caution:
- Install the rear oil seal within 10 min of applying the silicone sealant.

Thickness 4.0 - 6.0 mm (0.16 - 0.23 inch)
2. Apply clean engine oil to a new rear oil seal.

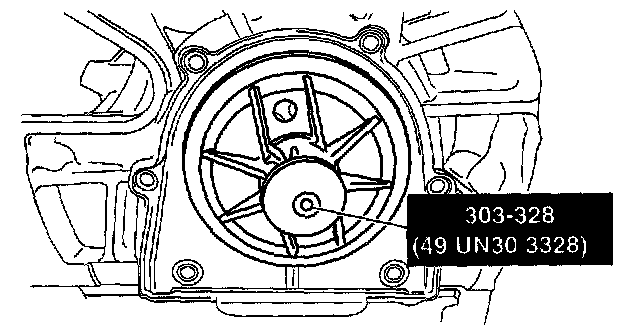

3. Install the rear oil seal using a SST.

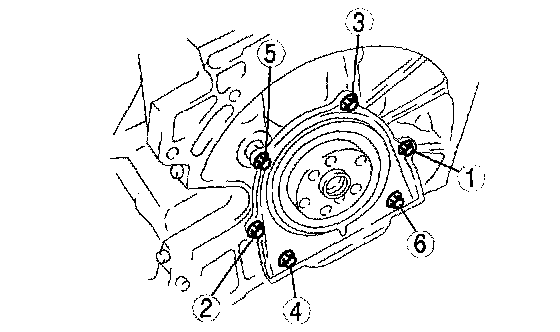

4. Tighten the rear oil seal installation bolts in the order shown in the figure.
Tightening torque 8.0 - 11.5 Nm (81.6 - 117.2 kgf-cm, 70.9 - 101.7 inch lbs.)
