Piston Ring Assembly Note

Piston Ring Assembly Note

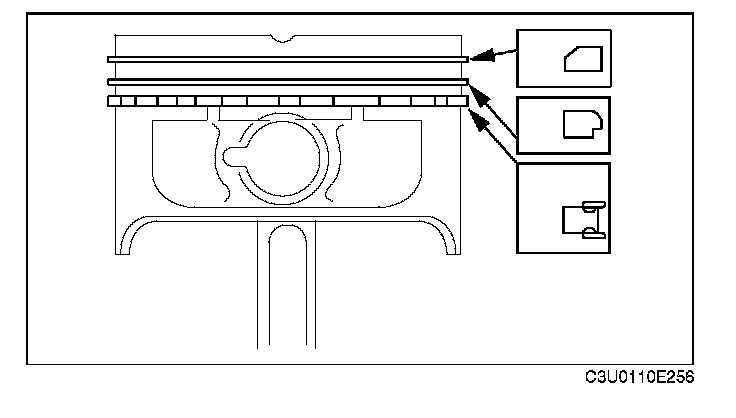

1. Assemble the oil ring.
2. Assemble the second ring with the notch facing downward.





3. Assemble the top ring with scraper face side upward.
