Oil Pump Driven Sprocket Assembly Note

Oil Pump Driven Sprocket Assembly Note

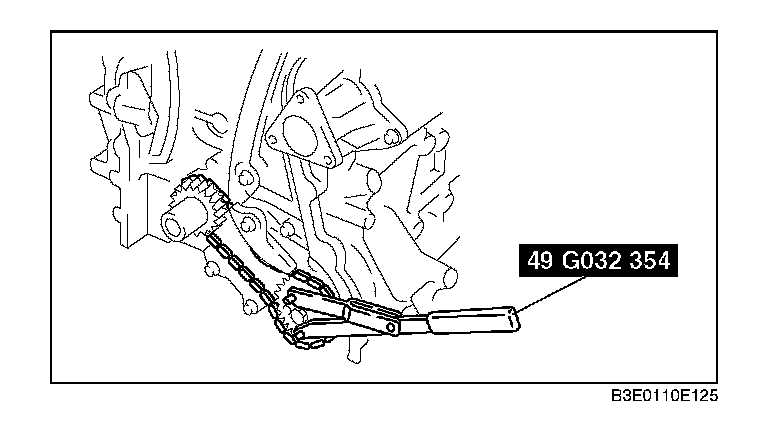

1. Install the SST on the oil pump driven sprocket to lock the oil pump against rotation.
