Cylinder Head Cover Assembly Note

Cylinder Head Cover Assembly Note

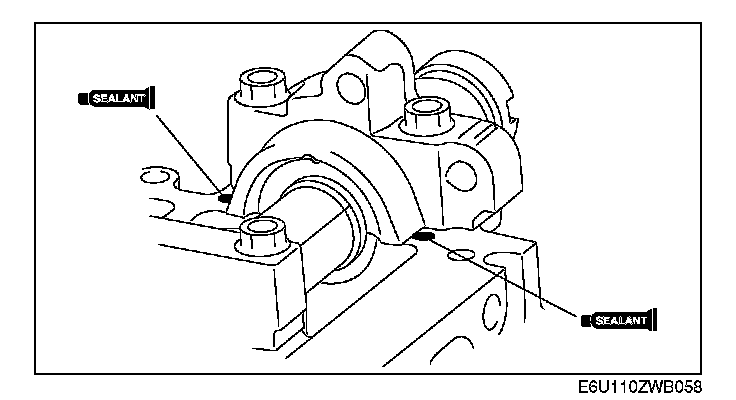

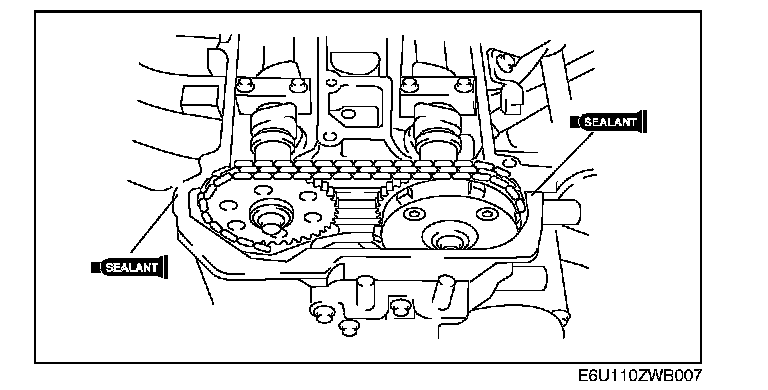

1. Apply silicone sealant to the areas shown in the figure.





Thickness
5.0 mm (0.196 in)

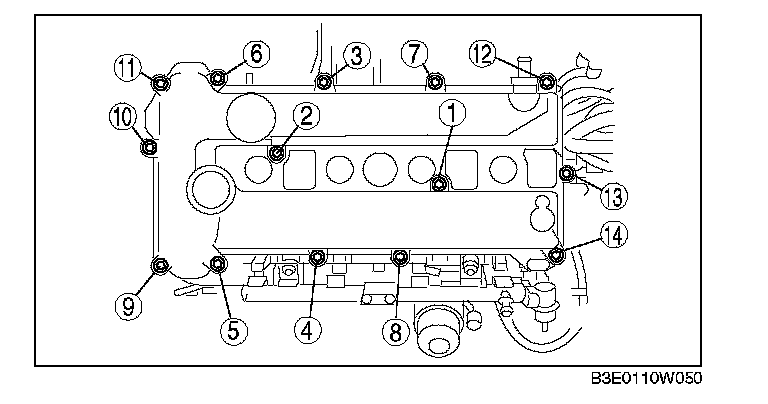

2. Install the cylinder head cover installation bolts in the order shown in the figure.

Tightening torque
8.0-10.5 N-m (81.6-107 kgf-cm, 70.9-92.9 in-lbf)
