Transmission Position Sensor/Switch
>>
Locations
>>
Component Locations
Component Locations

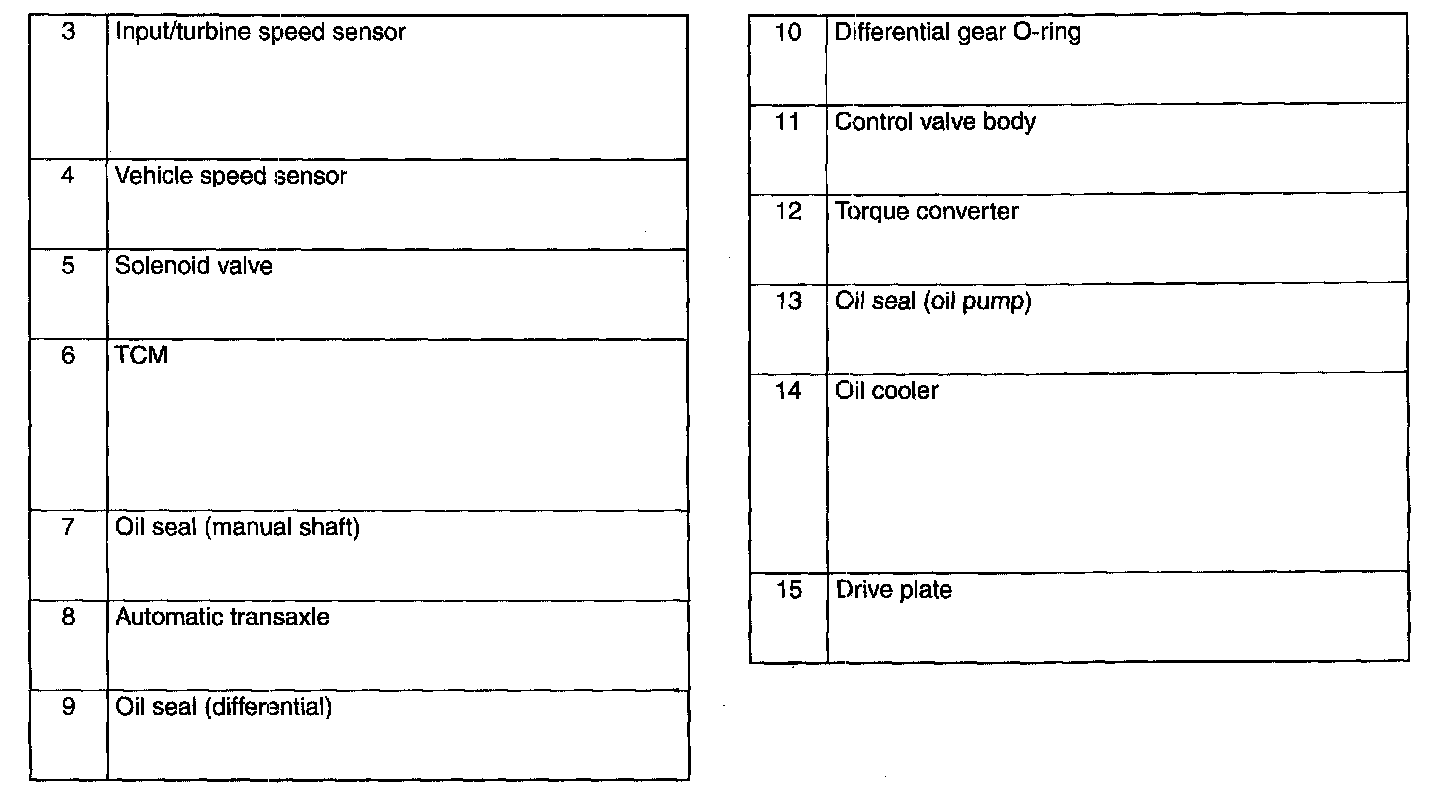

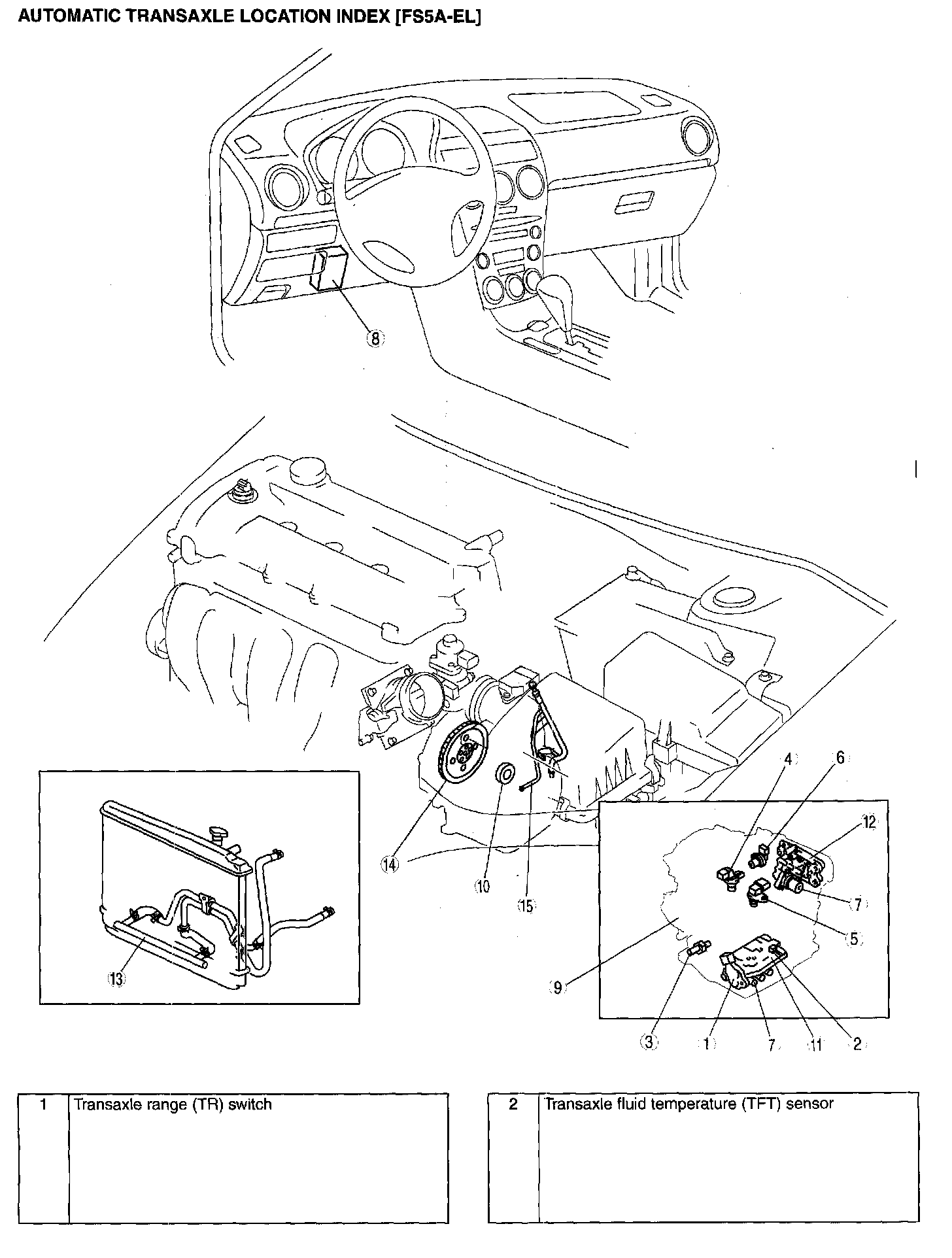

AUTOMATIC TRANSAXLE LOCATION INDEX [FS5A-EL]:
AUTOMATIC TRANSAXLE LOCATION INDEX [FS5A-EL]:

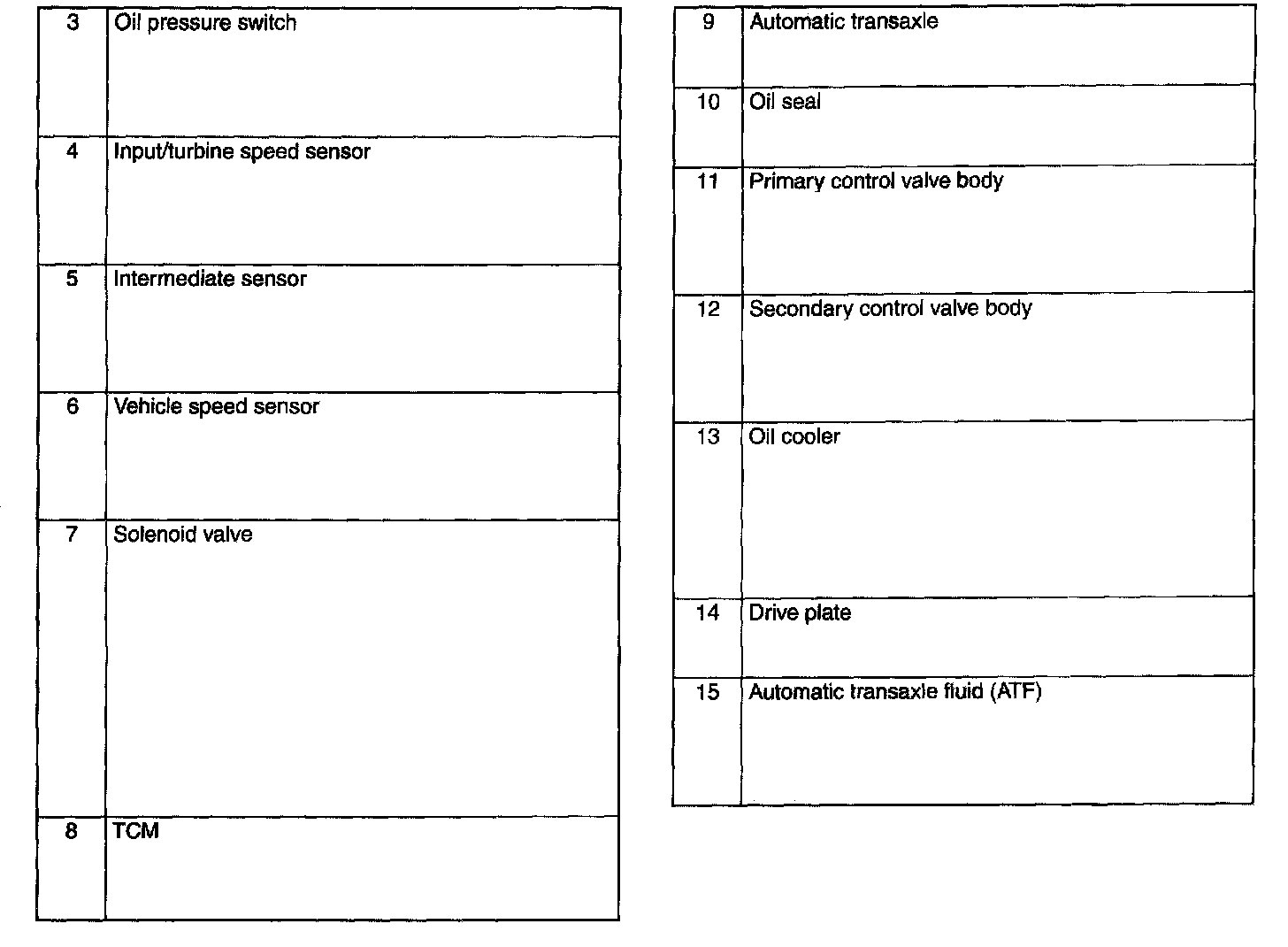

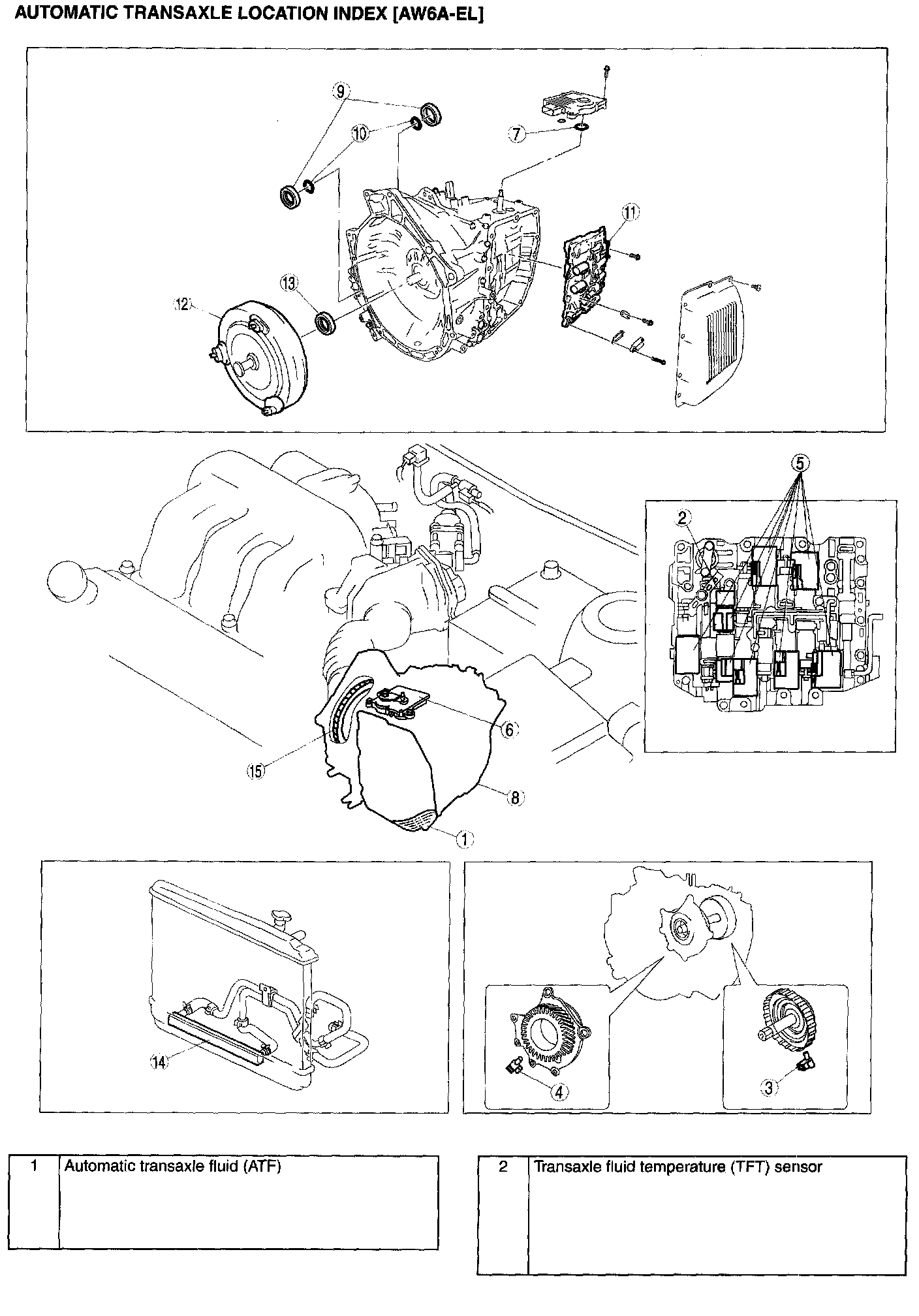

AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL]:
AUTOMATIC TRANSAXLE LOCATION INDEX [AW6A-EL]:
