Fuel Pump Ballast Resistor: Service and Repair

FUEL PUMP RESISTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the air cleaner.

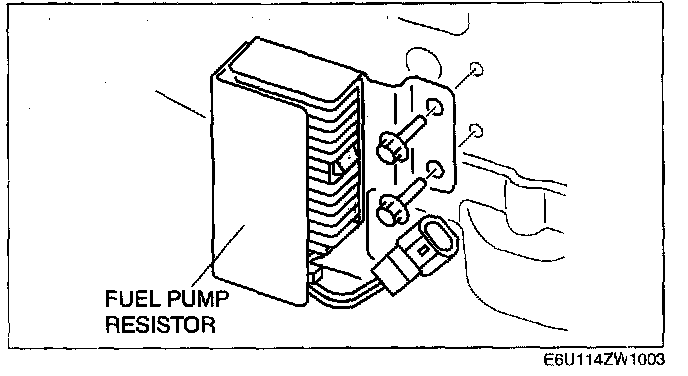

3. Disconnect the fuel pump resistor connector.
4. Remove in the fuel pump resistor.

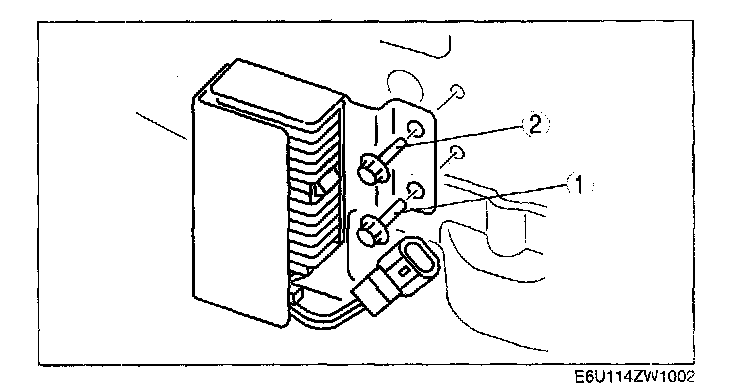

5. Install in the order as shown in the figure.

Tightening torque: 4.2-6.2 N.m {43-63 kgf.cm, 38-54 in.lbf}

6. Connect the fuel pump resistor connector.
