Intercooler: Testing and Inspection
CHARGE AIR COOLER INSPECTION
1. Remove the air bypass valve.

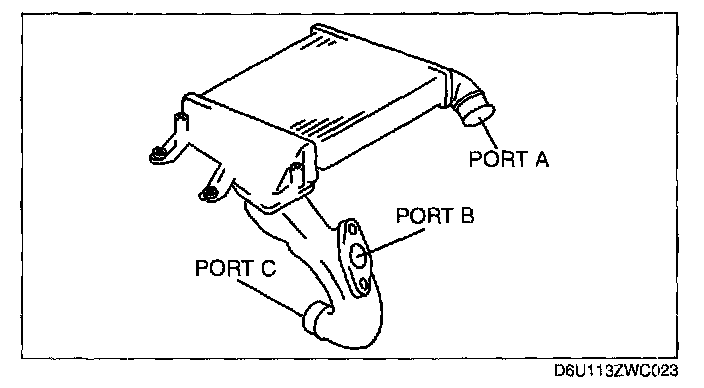

2. Plug ports A and B
3. Verify that there is no air leakage when air is sent from port C.
- If there is leakage, replace the charge air cooler.
1. Remove the air bypass valve.
2. Plug ports A and B
3. Verify that there is no air leakage when air is sent from port C.
- If there is leakage, replace the charge air cooler.
