Variable Induction Control Solenoid: Testing and Inspection

VARIABLE SWIRL SOLENOID VALVE INSPECTION

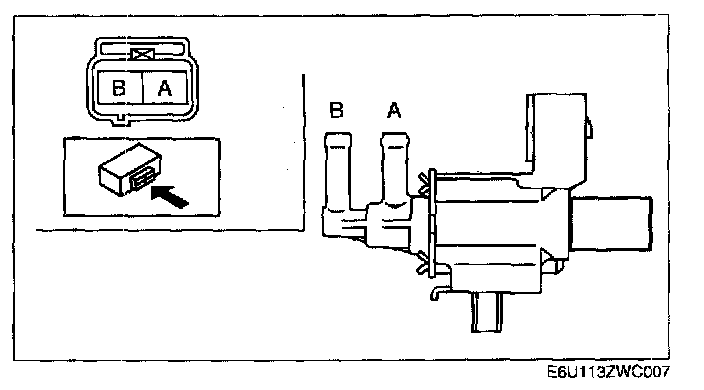

1. Remove the variable swirl solenoid valve.

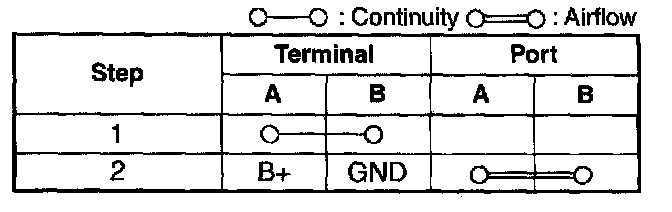

2. Inspect the airflow between the ports under the following conditions.
- If not as specified, replace the variable swirl control solenoid valve.
- If as specified, carry out the "Circuit Open/ Short Inspection".

Circuit Open/Short Inspection

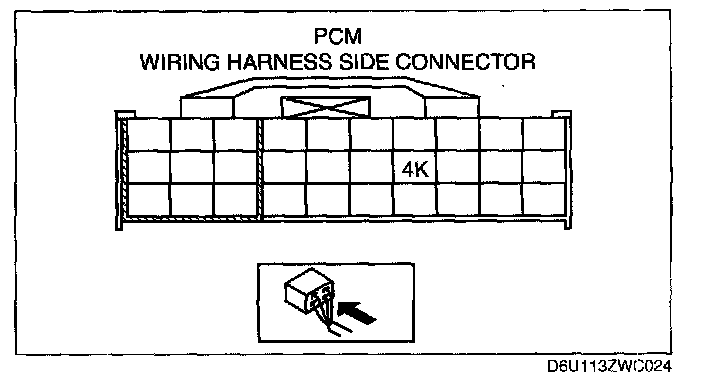

1. Disconnect the PCM connector.










2. Inspect the following wiring harness for open or short circuit (continuity check).

Open circuit
- If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

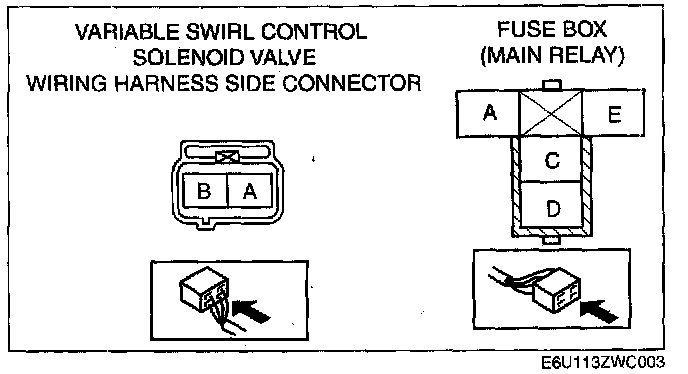

- Variable swirl control solenoid valve terminal B and PCM terminal 4K
- Variable swirl control solenoid valve terminal A and main relay terminal C

Short circuit
- If there is continuity, there is a short circuit. Repair or replace the wiring harness.
- Variable swirl control solenoid valve terminal B and body ground
- Variable swirl control solenoid valve terminal A and power supply
