Oil Seal Replacement [FS5A-EL]

OIL SEAL REPLACEMENT [FS5A-EL]





1. Drain the ATF.

Caution:
^ The oil seal] is easily damaged by the sharp edges of the drive shaft splines. Do not let the splines contact the oil seal.

2. Remove the drive shaft.
3. Remove the oil seal.

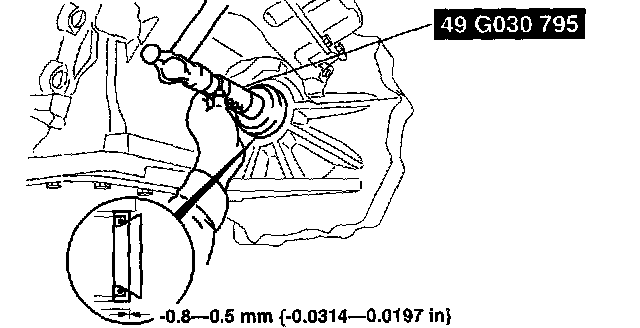

4. Using the SST and a hammer, tap a new oil seal in evenly until the SST contacts the transaxle case.
5. Coat the lip of the oil seal with transaxle oil.
6. Install the drive shaft.
7. Add ATF.
8. Carry out the mechanical system test.
