Differential Gear O-Ring Replacement [AW6A-EL]

DIFFERENTIAL GEAR O-RING REPLACEMENT [AW6A-EL]

Caution:
^ The O-ring is easily damaged by the sharp edges of the drive shaft splines. Do not let the splines contact the O-ring.

1. Remove the drive shaft and joint shaft.

Caution:
^ Do not damage the differential case.

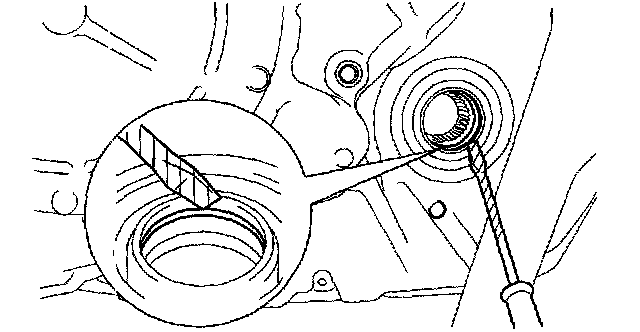

2. Remove and discard the O-ring using a tape-wrapped flathead screwdriver.

Caution:
^ Do not damage the O-ring.
^ Do not damage the differential case.

3. Apply ATF to a new O-ring and install it to the differential case.
4. Install the drive shaft and joint shaft.
