Secondary Control Valve Body Installation [FS5A-EL]

SECONDARY CONTROL VALVE BODY INSTALLATION [FS5A-EL]

On-Vehicle Installation

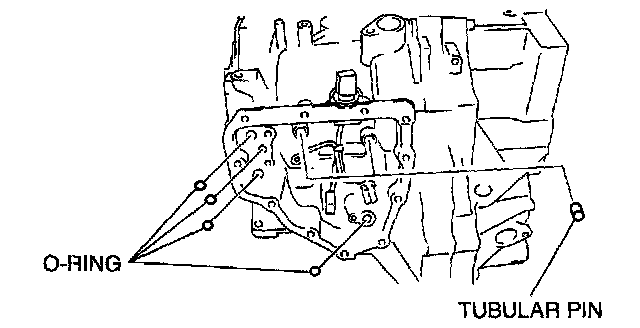

1. Install the tubular pin and new O-ring to the transaxle case.

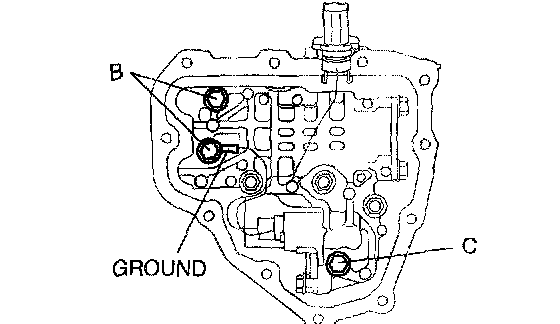

2. Install the secondary control valve body component and ground.
Tightening torque 7.8 - 10.8 Nm (80 - 110 kgf-cm, 70 - 95 inch lbs.)
Bolt length (measured from below the head)
B: 40 mm (1.575 inch)
C: 50 mm (1.967 inch)

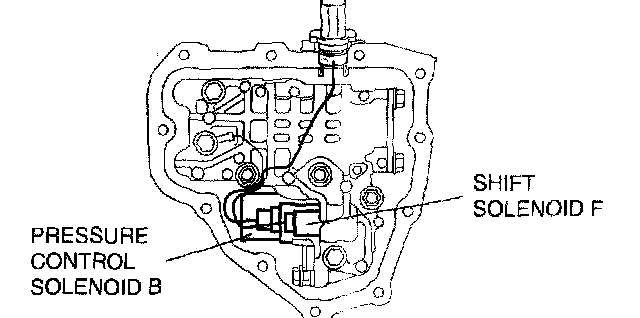

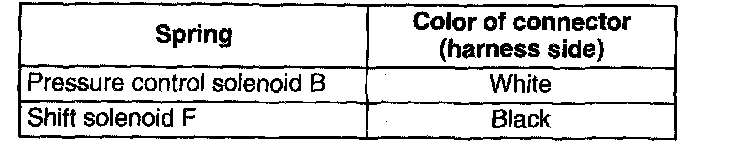

3. Match the harness colors, then connect the solenoid connector.

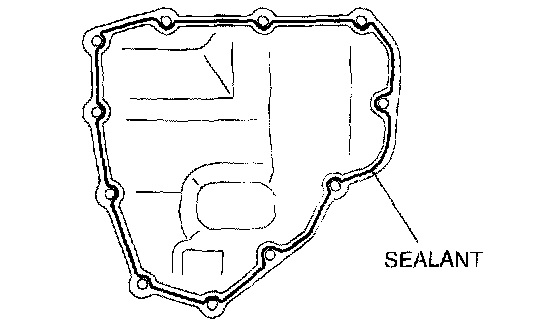

4. Apply a light coat of silicon sealant to the contact surfaces of the oil cover and transaxle case.





5. Install the oil cover.
Tightening torque 7.8 - 10.8 Nm (80 - 109 kgf-cm, 70 - 95 inch lbs.)

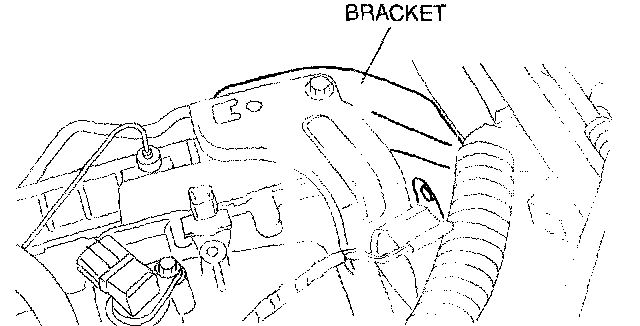

6. Install the bracket in the figure.
Tightening torque 18 - 26 Nm (1.9 - 2.6 kgf-m, 14 - 19 ft. lbs.)
7. Install the battery and battery tray.
8. Connect the negative battery cable.
9. Add ATF
10. Carry out the mechanical system test.
11. Carry out the road test.
