Clutch Master Cylinder Disassembly/Assembly [A26MX-R]

CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY [A26MX-R]

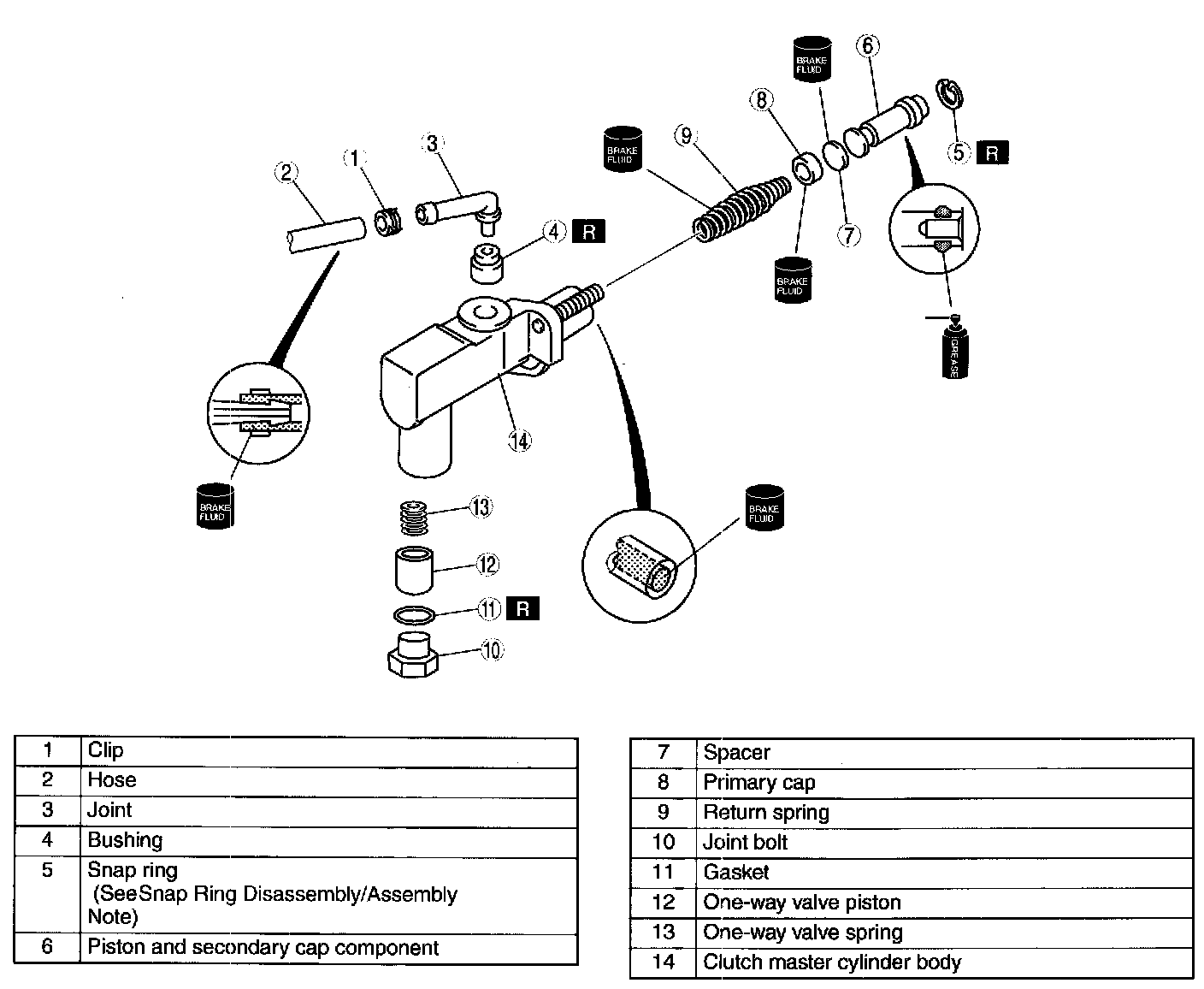

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly

Snap Ring Disassembly/Assembly Note

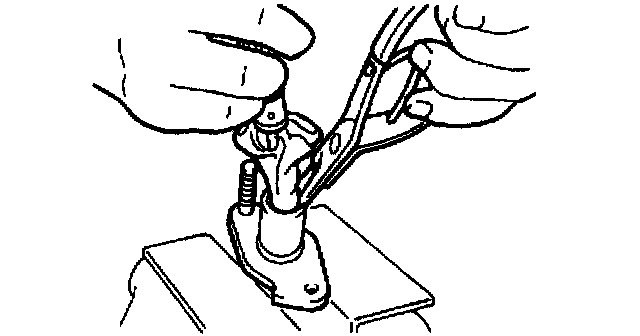

1. Hold the piston down using a cloth-wrapped pin punch.
^ If disassembling, remove the snap ring; if assembling, install it.
