Clutch Release Cylinder Removal/Installation [G36M-R, A65M-R]

CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [G36M-R, A65M-R]

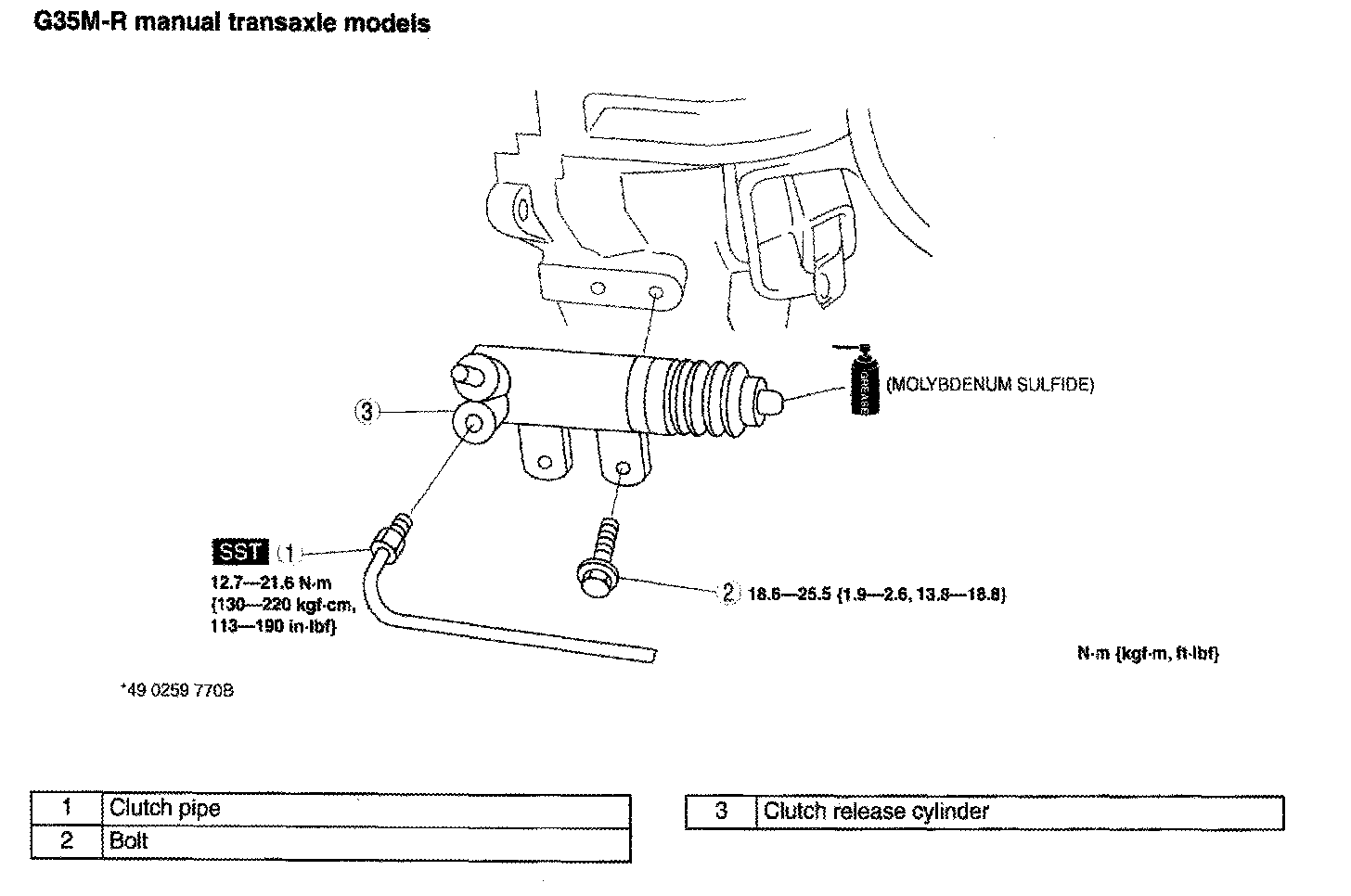

G35M-R manual transaxle models:

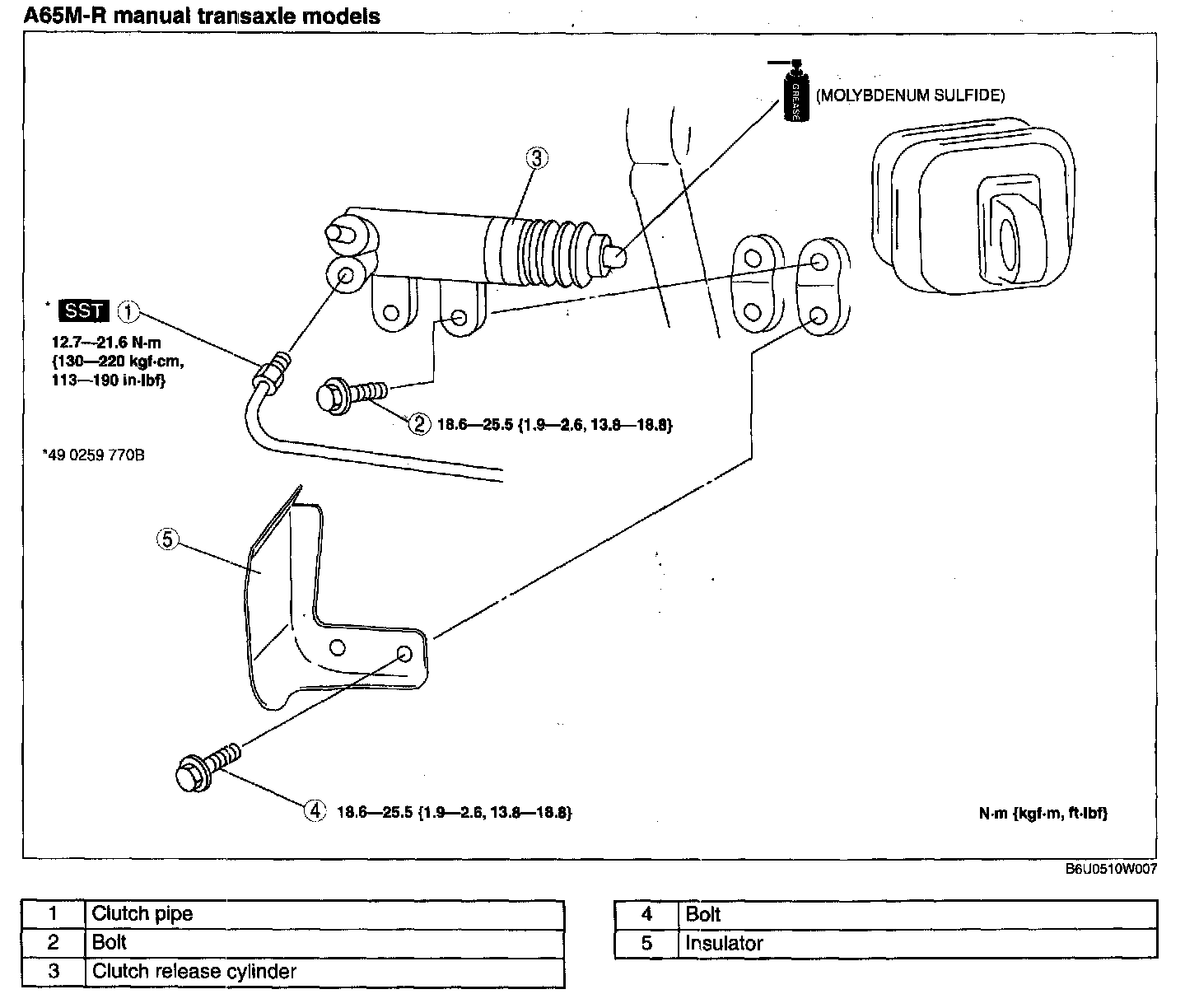

A65M-R manual transaxle models:





1. Remove the under cover.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
