Clutch Pedal Removal/Installation [G35M-R, A65M-R]

CLUTCH PEDAL REMOVAL/INSTALLATION [G35M-R, A65M-R]





1. Remove the battery and battery tray.

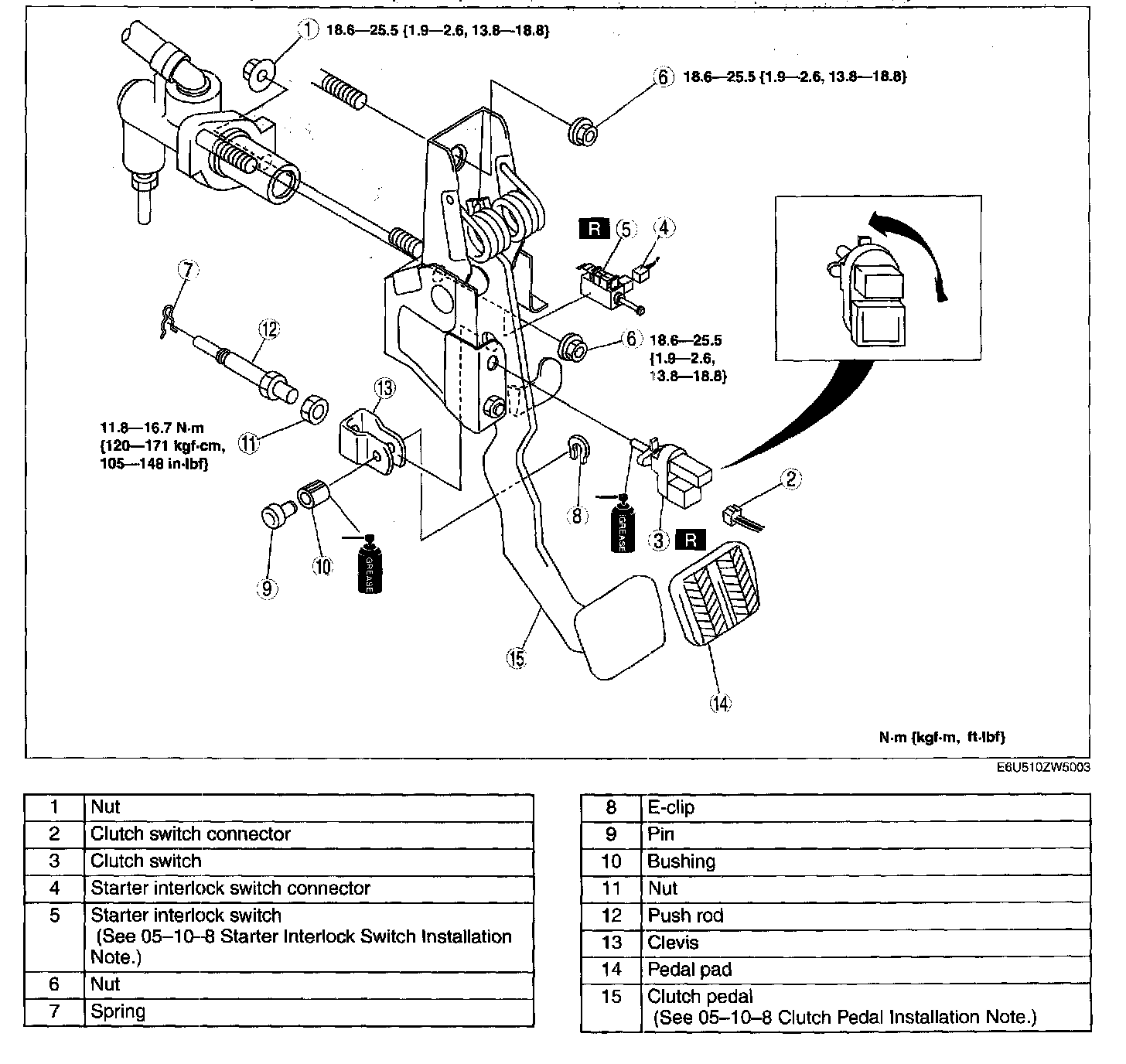

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, inspect the clutch pedal.

Clutch Pedal Installation

Note:
1. After installation, adjust the pedal height and free play.

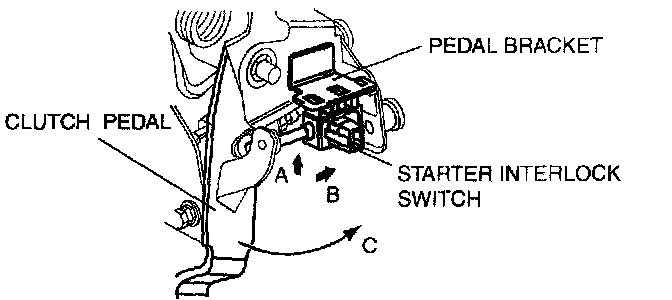

Starter Interlock Switch Installation Note





1. Insert the new starter interlock switch into hole in pedal bracket in arrow direction A.
2. Slide starter interlock switch pressing it in arrow direction B until locked.
3. Press clutch pedal fully in arrow direction C and adjust terminal of starter interlock switch.
