Shift Mechanism Removal/Installation [A26MX-R]

SHIFT MECHANISM REMOVAL/INSTALLATION [A26MX-R]





1. Remove the battery and battery tray.
2. Remove the air cleaner component.
3. Remove the dashboard completely.

4. Remove the SAS control module.
5. Remove the climate control unit.
6. Remove the rear heat duct.

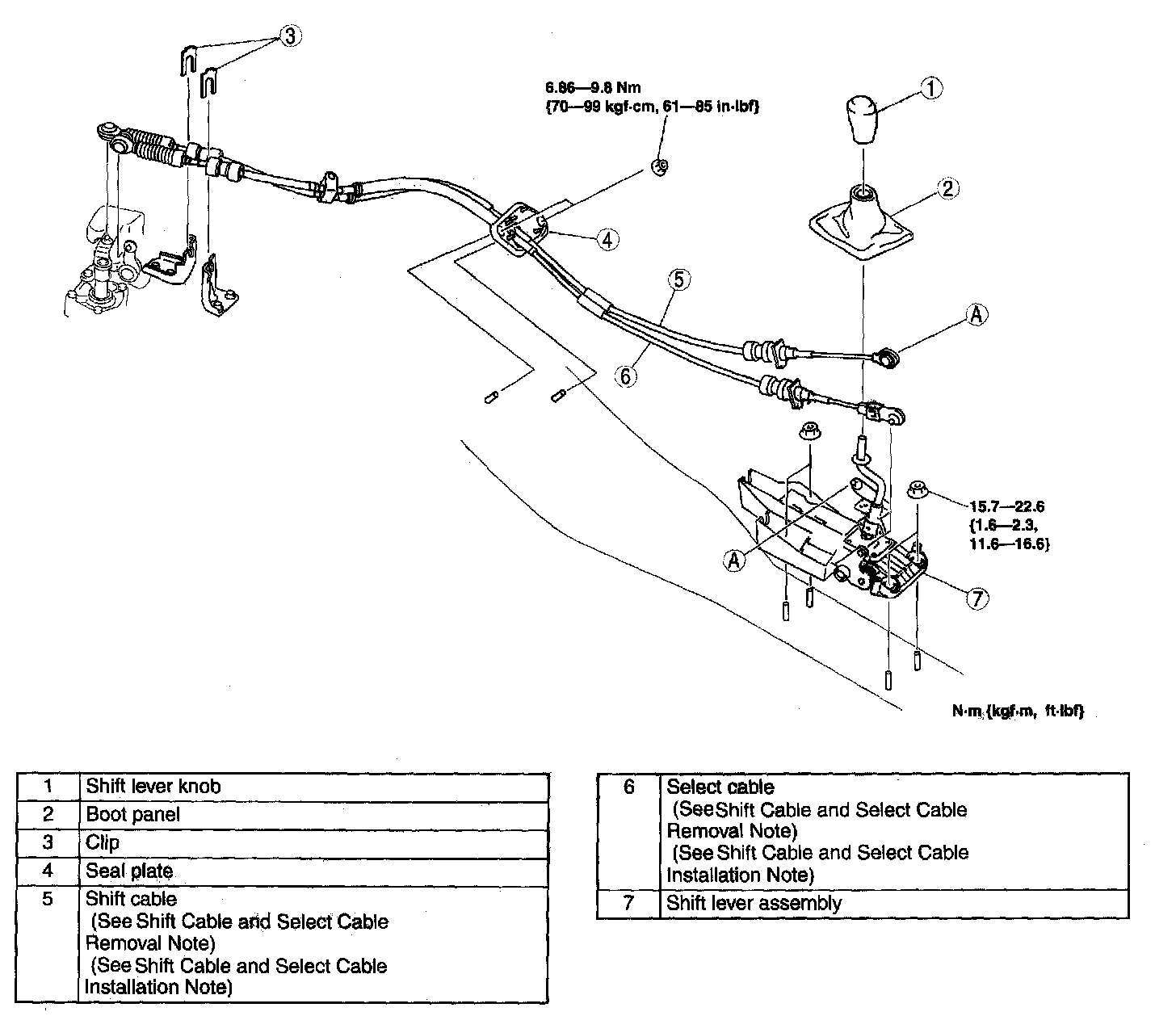

7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
9. After installation, verify that the shift lever can be shifted smoothly into each position.

Shift Cable and Select Cable Removal Note

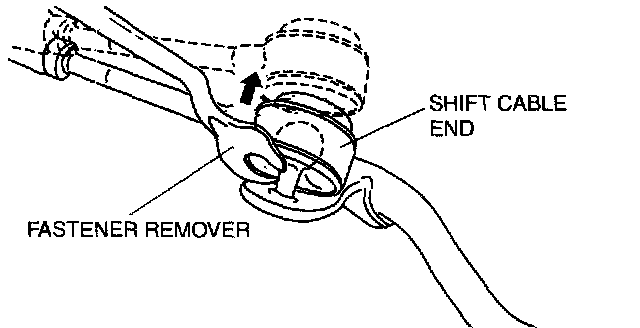

1. Remove the both shift cable end and select cable end using a fastener remover.

Shift Cable and Select Cable Installation Note





1. Remove the center console.

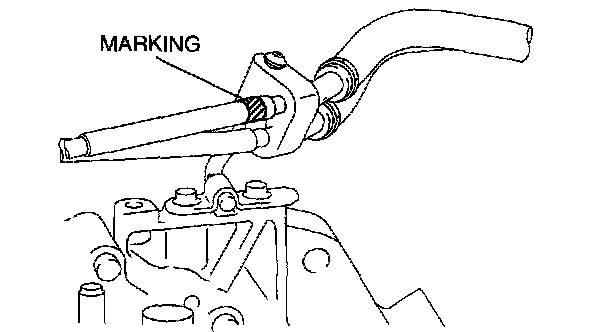

2. Install the shift cable and select cable to the mount rubber bracket turning the marking upward
3. Make sure that the shift lever (transaxle side) is in neutral.

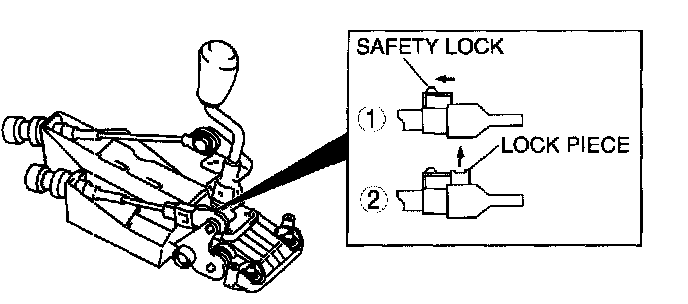

4. Unlock the lock piece of the select cable (shift lever side) in the order shown in the figure.
5. Shift the shift lever to neutral.

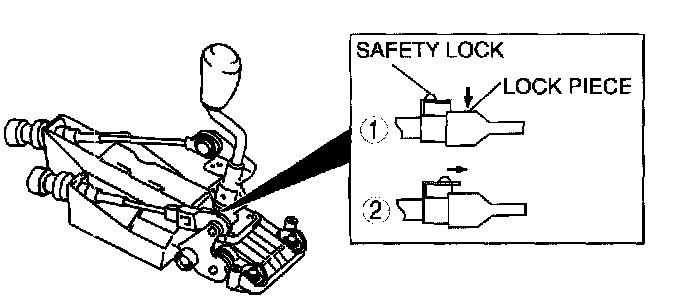

6. Lock the lock piece of the selector cable (shift cable side) in the order shown in the figure.
7. Install the center, console.
8. Shift the shift lever from neutral to other position, and make sure that there are no other components in that area to interfere with the lever.
