Rear

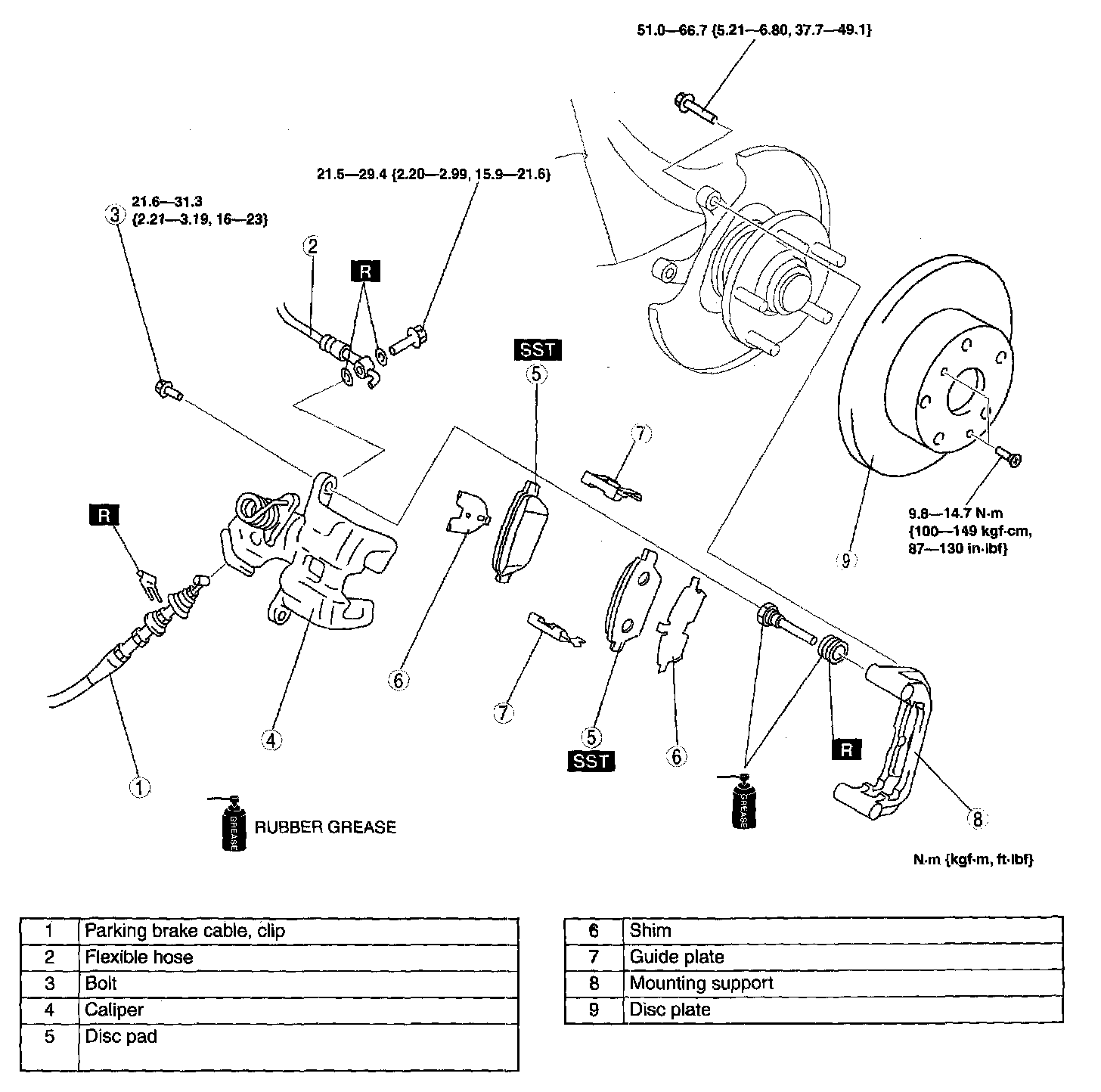

REAR BRAKE (DISC) REMOVAL/INSTALLATION





1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the pedal several times, rotate the wheel by hand, and verify that the brake does not drag.

Disc Pad Installation Note

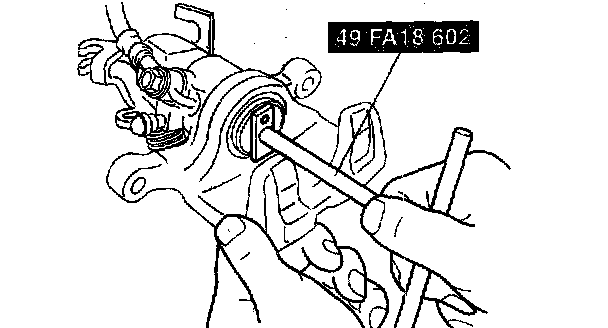

1. Push the piston fully inward using the SST.
2. Install the disc pads.
