Parking Brake Lever: Service and Repair

PARKING BRAKE (LEVER TYPE) REMOVAL/INSTALLATION





1. Remove the console.
2. Remove the rear seat cushion (Sedan) or rear seat (5-Door, Sport Wagon).
3. Remove the propeller shaft (1-3 WITH TC).
4. Remove the exhaust pipe insulator.

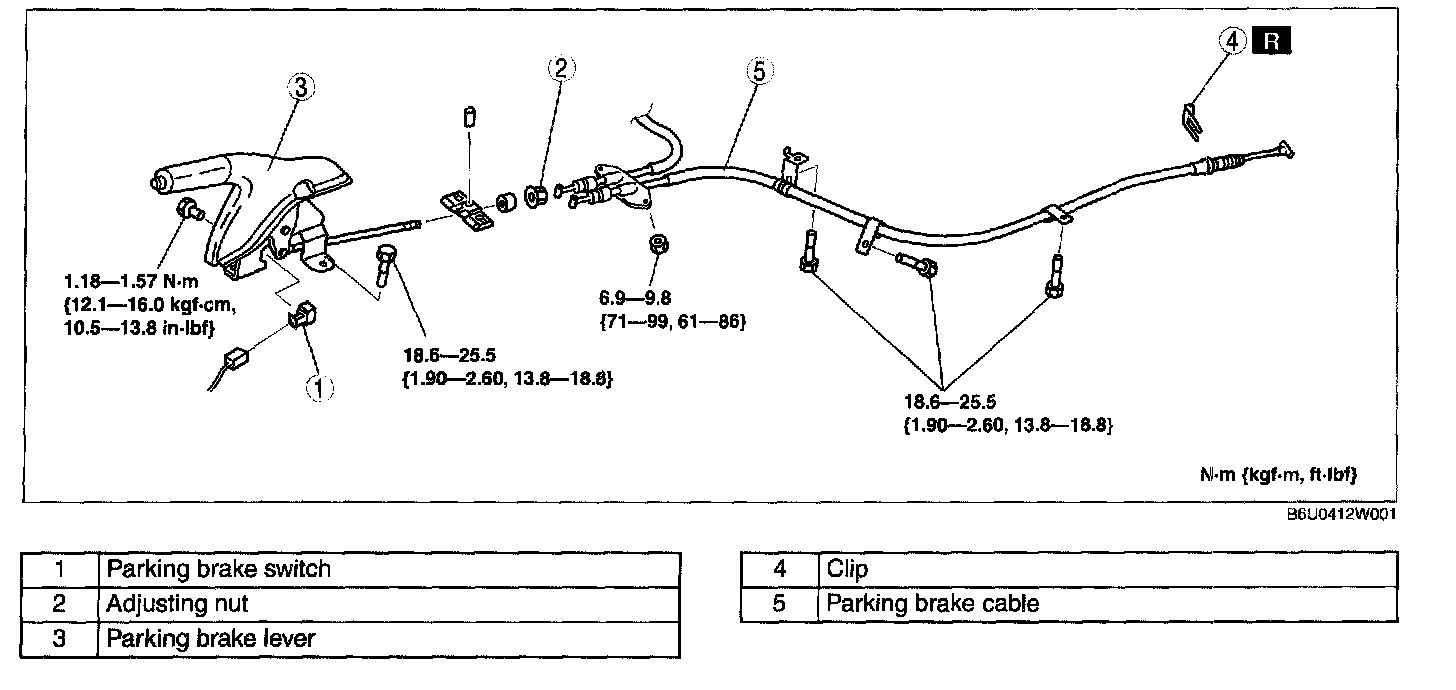

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Adjust the parking brake stroke.
