DSC Off Switch Removal/Installation

DSC OFF SWITCH REMOVAL/INSTALLATION





1. Disconnect the negative battery cable.

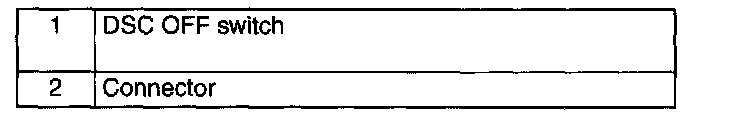

2. Remove in the order indicated in the table.





3. Install in the reverse order of removal.

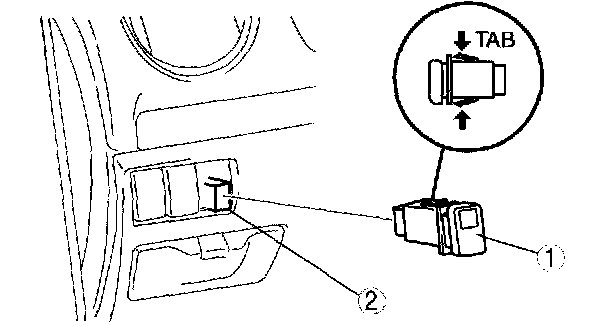

DSC OFF Switch Removal Note
1. Insert your hand from the lower side of the dashboard and squeeze the tabs of the DSC OFF switch.
2. Pull the DSC OFF switch forward to remove it.
