Power Steering Pump: Service and Repair

POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY [L3, L3 WITH TC]








Note:
^ The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

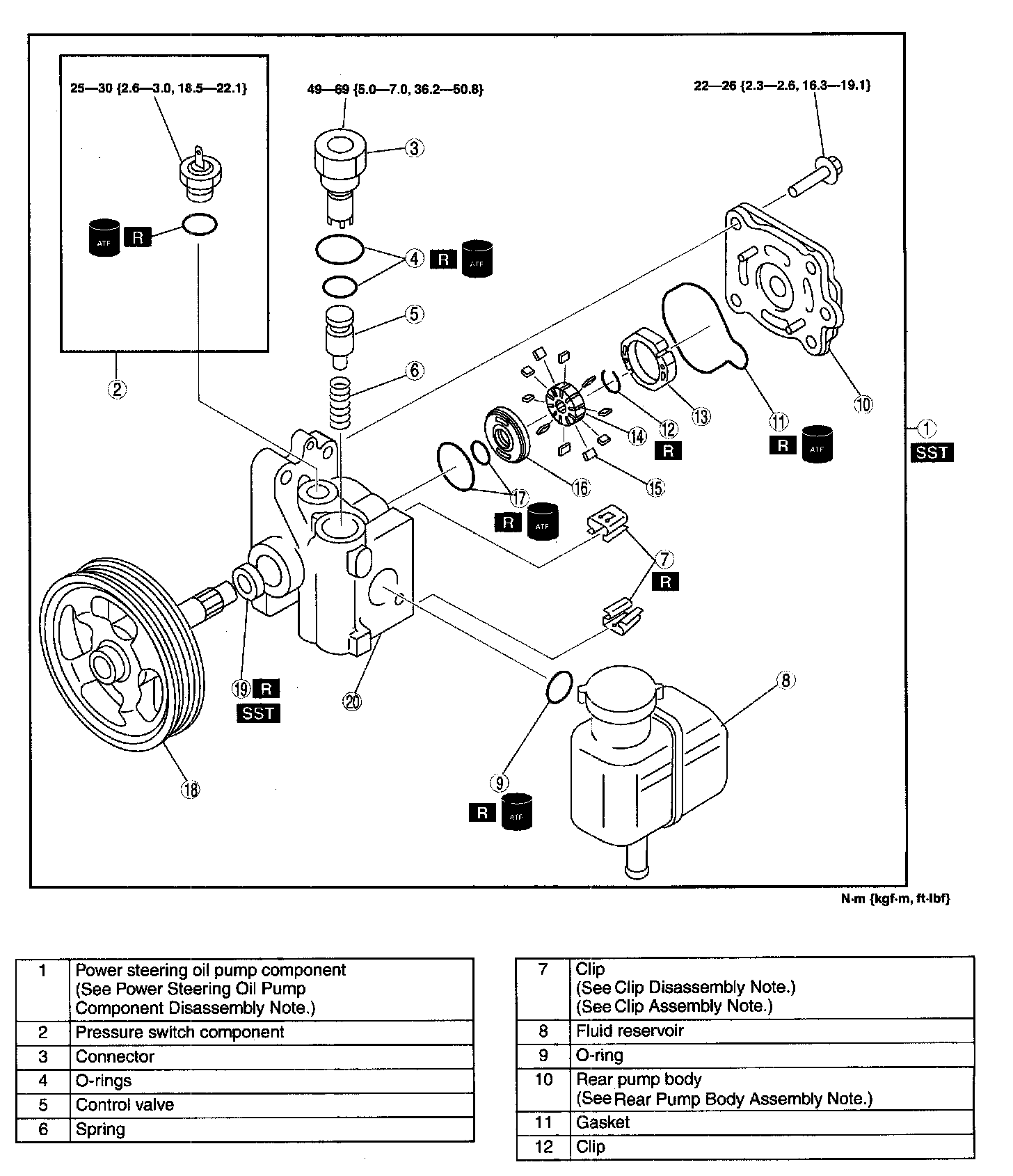

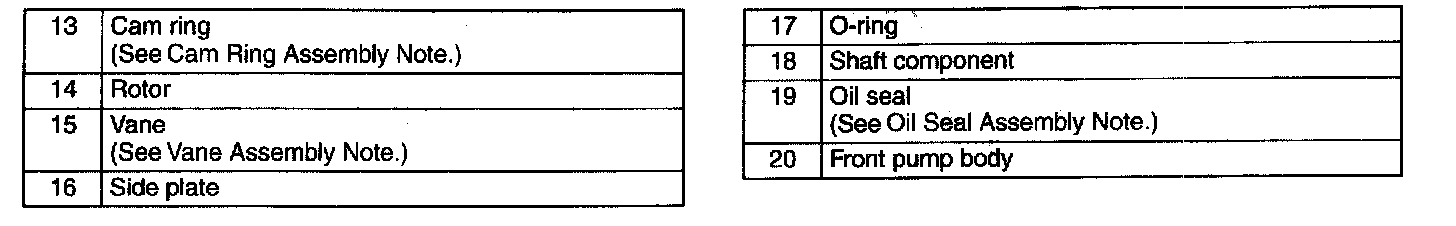

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Power Steering Oil Pump Component Disassembly Note

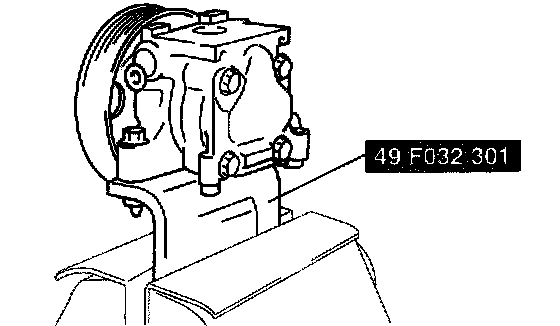

1. Secure the power pressure oil pump using the SST.

Caution:
^ Use the SST to prevent damage to the pump when securing it in a vise.

Clip Disassembly Note

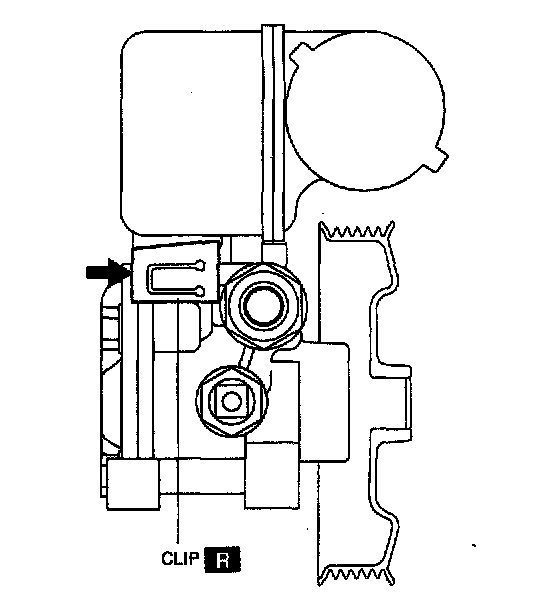

1. Lift up the clip tab using a screwdriver
2. Remove the clip pushing with a screwdriver and a hammer as shown in the figure.

Clip Assembly Note

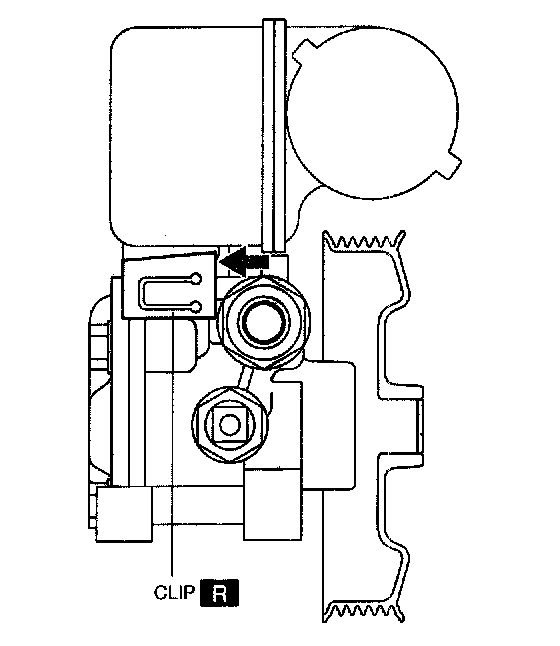

1. Push the clip slowly in the direction shown in the figure.
2. Confirm that the clip tab is caught correctly.

Oil Seal Assembly Note

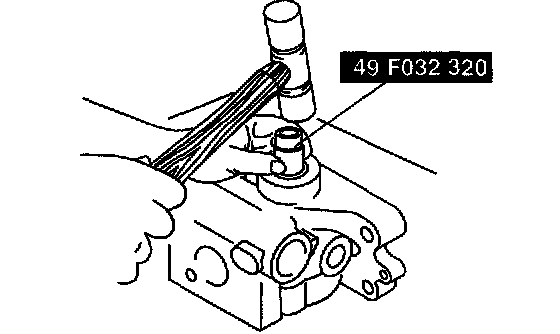

1. Install the oil seal in the front pump body using the SST and plastic hammer.

Vane Assembly Note

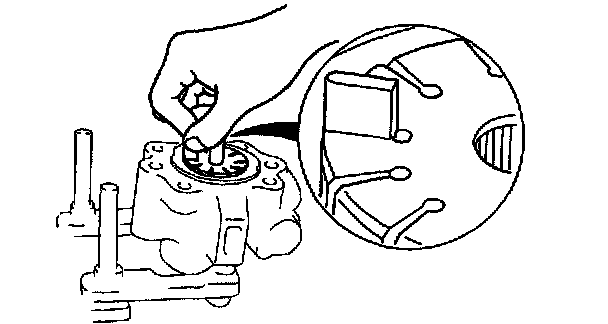

1. Place the vanes in the rotor with the rounded edges contacting the cam.

Cam Ring Assembly Note

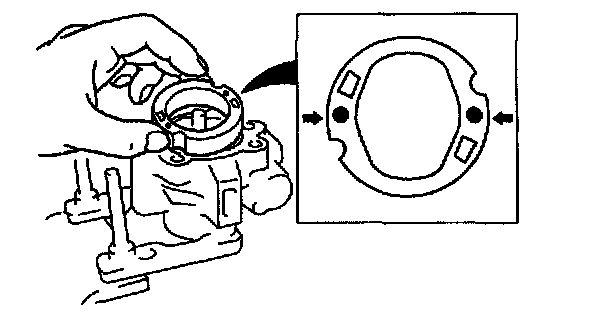

1. Install the cam ring in the front pump body with the mark facing upward.

Rear Pump Body Assembly Note
1. After installing the rear body, manually turn the shaft to verify that it rotates smoothly.
