Steering Gear and Linkage Removal/Installation [L3 With TC]

STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION [L3 WITH TC]








Caution:
^ Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

1. Remove the joint cover.
2. Remove the ABS wheel-speed sensor.
3. Remove the under cover and splash shield.
4. Separate the stabilizer control link (shock absorber side).
5. Separate the front lower arm (front and rear) ball joint.
6. Remove the shock absorber bolt (lower side).

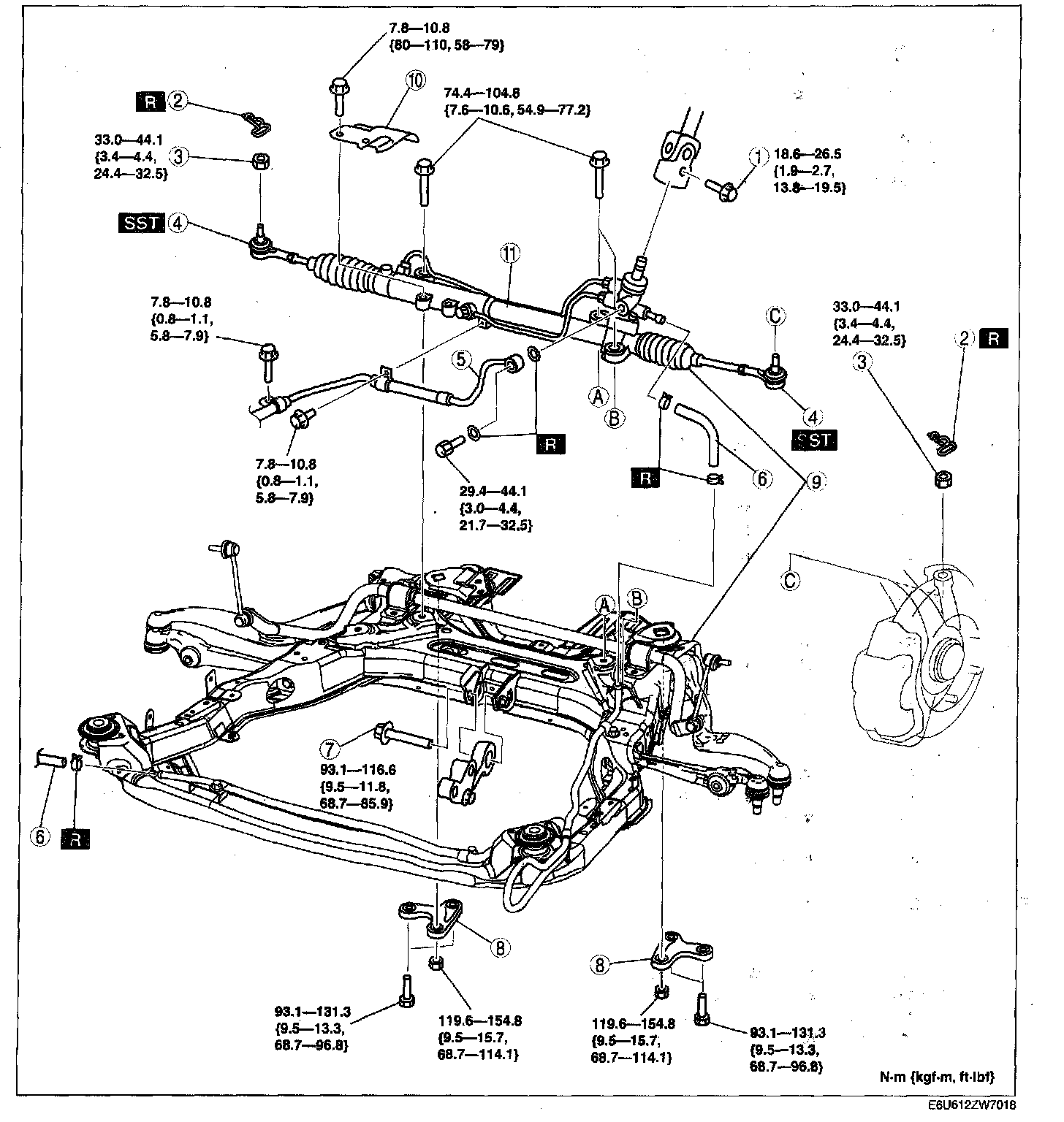

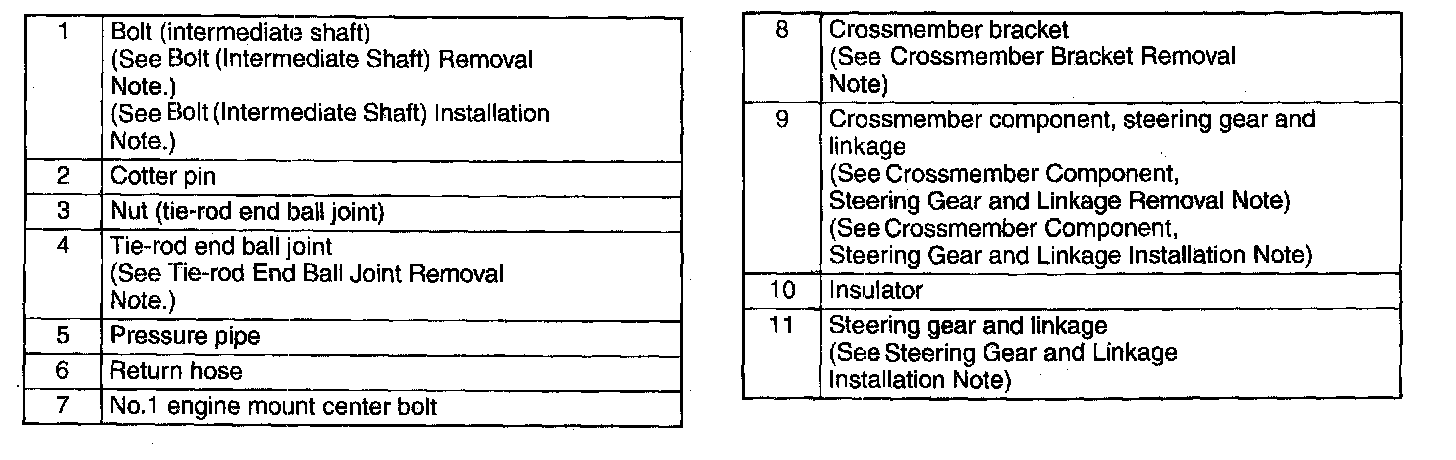

7. Remove in the order indicated in the table.
8. Install in the reverse order of removal.
9. After installation, inspect the front wheel alignment.
