Rear Suspension

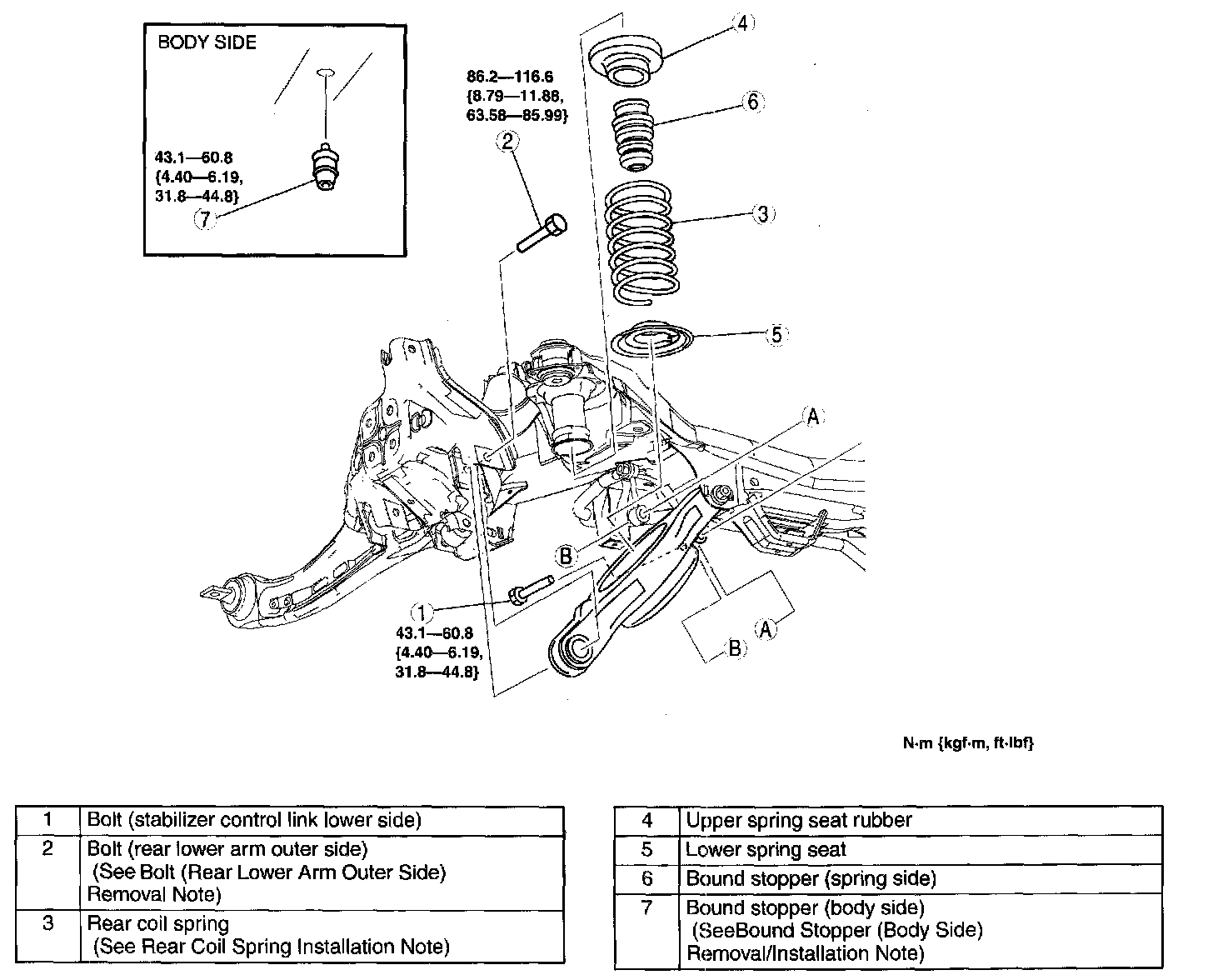

REAR COIL SPRING REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Inspect the rear wheel alignment.





Bolt (Rear Lower Arm Outer Side) Removal Note
1. Support the lower arm with a jack.
2. Loosen the inner bolt of the lower arm.
3. Remove the outer bolt of the lower arm.





Bound Stopper (Body Side) Removal/installation Note
1. Remove or/and install the bound stopper (body side) using the extension bar.

Rear Coil Spring Installation Note

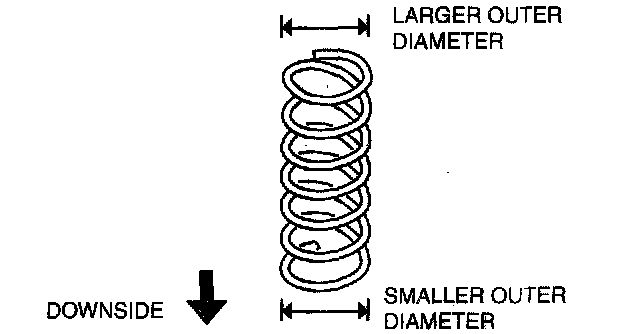

1. Install the coil spring so that the small outer diameter faces downside.

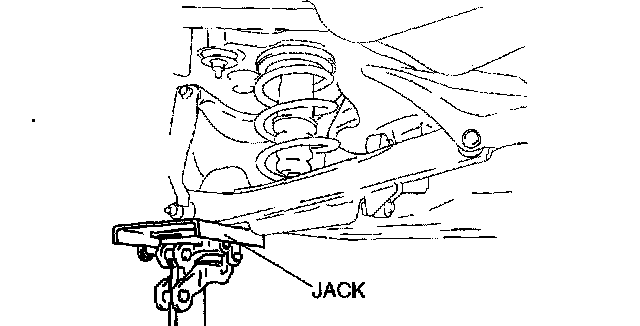

2.Position the jack under the lower arm and jack up slowly

Warning:
^ Installing the coil spring is dangerous. The coil spring could fly off, and cause serious injury or death.





3. Install the lower arm (outer side) bolt.
