Air Intake Actuator Inspection

AIR INTAKE ACTUATOR INSPECTION [L3 WITH TC]

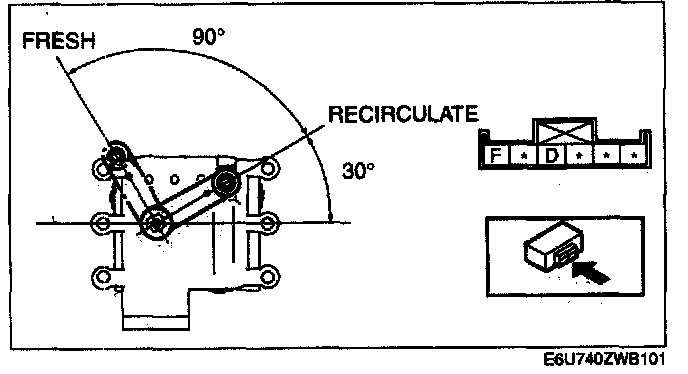

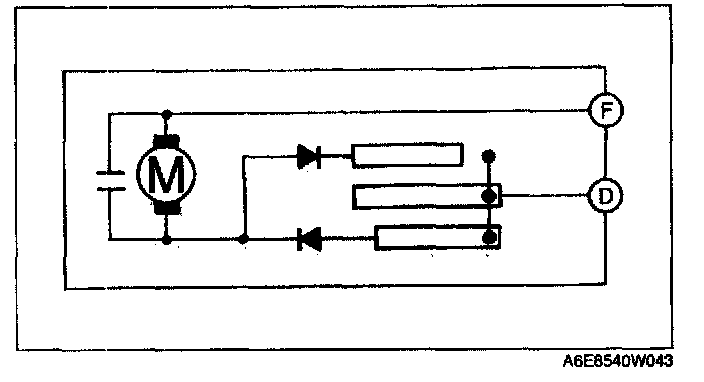

1. Connect battery positive voltage to terminal D or F and ground to terminal F or D of the air intake actuator.

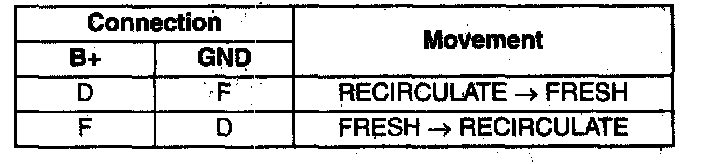

2. Verify that the air intake actuator operates as shown above.
- If there is any malfunction, replace the air intake actuator.
