AIR MIX ACTUATOR INSPECTION

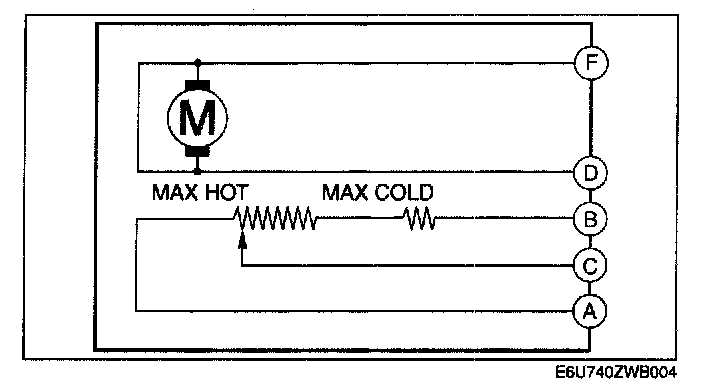

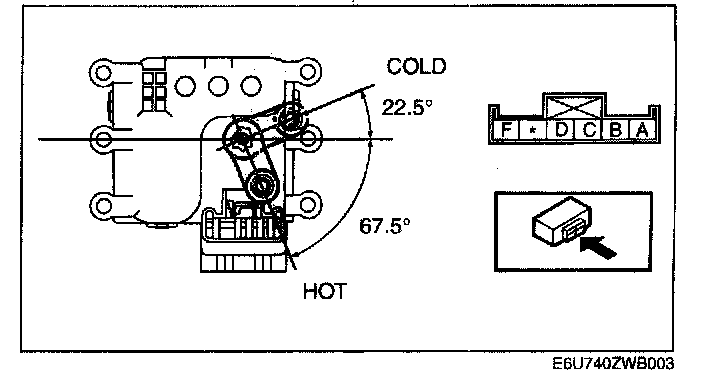

1. Connect battery positive voltage to terminal D or F and around to terminal F or D of the air mix actuator.

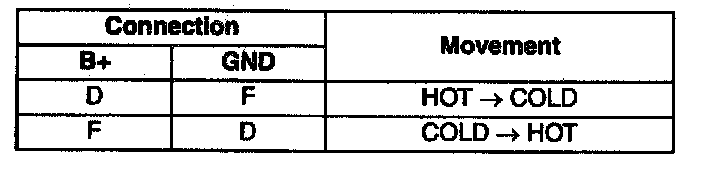

2. Verify that the air mix actuator operates as shown above.
- If there is any malfunction, replace the air mix actuator.

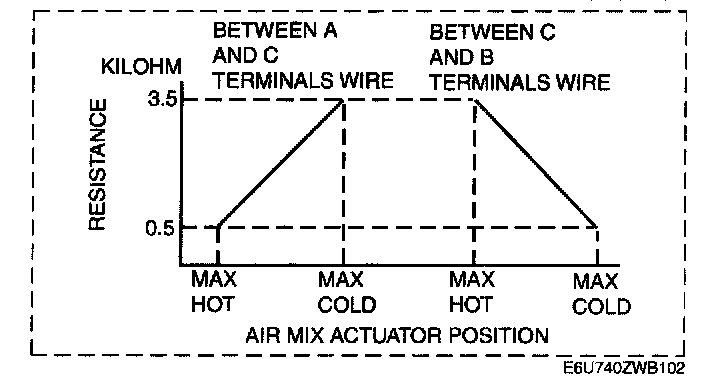

3. Verify that the resistance between the terminals of the air mix actuator are as shown in the graph.
- If there is any malfunction, replace the air mix actuator.
